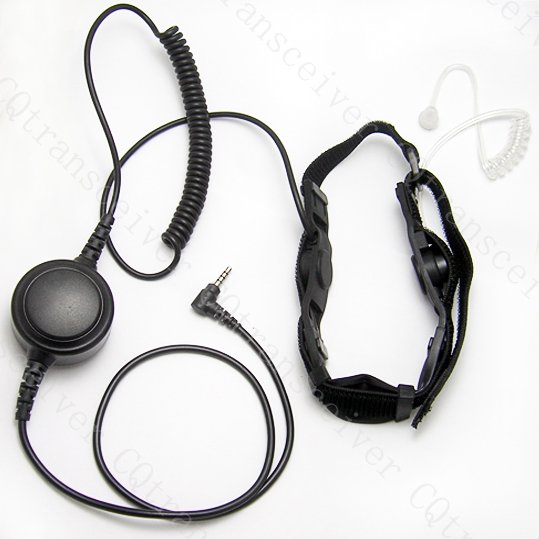

Two sensors Heavy Duty Throat Vibration Headset Mic Ear bud for Yaesu Vertex radio VXF-10 VXF-20 VX-1R VX-2R VX-3R VX-5R VXF-1

Features:

--Two sensors design to make the quality of sound more true and clear

--The high quality transparent tube is not easy to be detected

--extended 3.5mm earphone jack inlcuded,

-- Hear your HAM friends clearly even in noisy environment as your voice is transmitted via vibration of your throat

-- Heavy duty PTT

-- The elastic Velcro strap that suits head sizes from 12 to 25 inches. You can adjust the size freely.



Specifications:

Speaker:

-Sensitivity: 120 +/- 3dB &1kHZ
-Transducer: moving coil dynamic speaker Impedance: 32ω +/- 15% &1kHZ
-Resonance freq (FO) 400HZ +/- 20%
-Rated input power: 200mW Maximum input power: 500mW


Microphone:

-Sensitivity: -37.5+/-2dB &1kHZ 2.2Kω 3V 0dB=1v/pa
-Impedance: Max. 2.20kω &1kHZ
-Directivity: Omni-directional Frequency: 100Hz - 16000Hz
-Max operation voltage: 10V
-Standard operation voltage: 3V;
-Current consumption: Max. 0.5mA;
-S/N ratio: Min. -56dB &1.1kHZ


Working with below Yaesu / Vertex portable radios:

FT-10R, FT-40R, FT-50R, FT-60R, VX-10, VX-110, VX-130, VX-131, VX-132, VX-150, VX-160, VX-180, VX-210, VX-300, VX-400, VX-410, VX-420,VX-424,VX-427, VXF-1, VXF-10, VXF-20, VX-1R, VX-2R, VX-3R, VX-5R.
,
