The TDA7498E is a dual BTL class-D audio amplifier with a single power supply designed for home systems and active speaker applications.
This amplifier is TDA7498E chip version not normal TDA7498 or TDA7498L chip,
TDA7498E version support Max 160W*2 output. Upgrade IC chip to TDA7498E 160w + 160w R. M. S. + TL082 OPAMP
Suitable for 2Ω-8Ω Speakers and Subwoofer !

Feature :

1. Double DC speaker protection function :
Can protect your speaker under extreme condition (for example : when the output is up to DC20V or above. )

2. Wide power supply :
With a polarity reverse connection protection circuit,can be functioned well under 24V- 38V voltage,so you can connect external power supply without worry for self DIY !
For example,36V power supply,can drive 4Ω low impedance high power speaker without Speaker staccato.

3. Use digital amplifier Special inductive,very perfect LC circuit,can drive up to 200W sound box without damage the amplifier,matching with the 36V4. 16A power supply we offer can be used with most popular speakers.

4. Processing function :
The newest analog class D audio power amp TDA7498E
The High current output characteristics of TDA7498E not only ensured high power output but also solved the problem of power or current limit for 8Ω-2Ω Impedance speakers.
TDA7498E also intergrates Built in noise suppression, Standby function, Mute function,etc. to improve sound quality function in terminal application, and quite suitable to inhibit Balanced input of TDMA Noise.

5. Built-in Intelligent current protection function, can identify the peak current frequency range of speaker requires,and autiomatically preventing audio stream output interrupt.

6. TDA7498E can achieve the flexible configuration of audio system between stereo and mono mode ,provide Mono parallel function, can drive subwoofer speaker/Bass speakers of 2. 1 Audio system configuration.

Specification :

Output power : (DC 32V4. 5A)
140 W / 4Ω; THD = 10%;
105 W / 6Ω; THD = 10%;
70 W / 8Ω; THD = 10%;
Input level : 400mv to 2V
Chip efficiency : 90%
Chassis color : Black
Panel color : Black

Case material : Aluminum
Chassis technology : Brawing, coloring oxide, CNC machining
Screen printing process : Laser engraving
Input Interface : RCA sockets (gold plated) stereo input
Power supply : 100-240ACV
Circuit plate : 1. 6mm, Immersion Gold of 2OZ (oz) copper, the most advanced processing
Machine Size : 168 × 98 × 36mm (including protruding parts)

Package Includes :

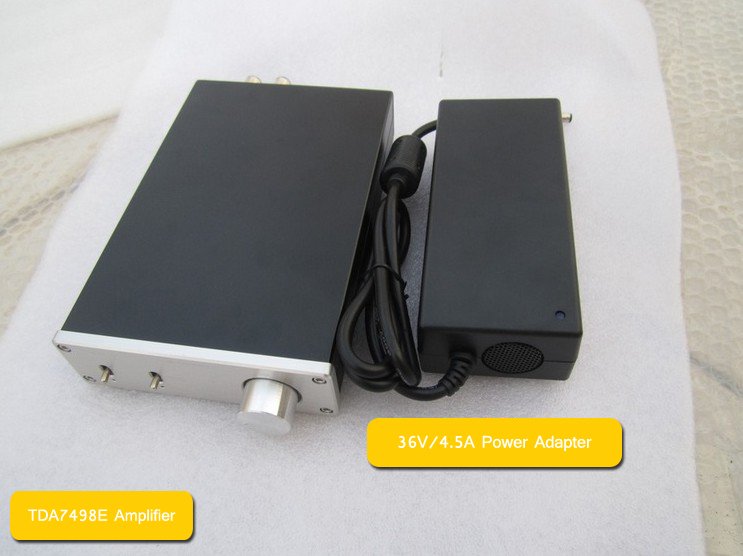

1 x 160W+160W TDA7498E HiFi Amplifier
1 x Power adapter(Comes according to you country :)
