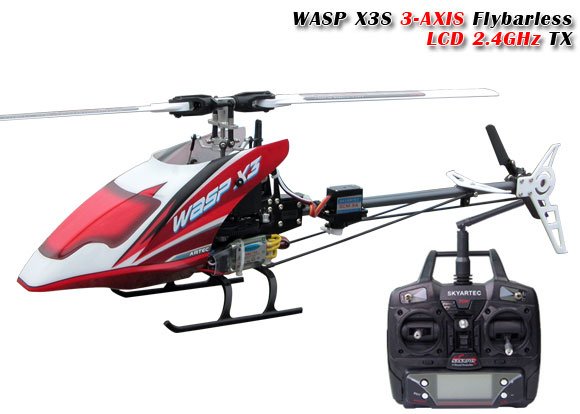

Skyartec Wasp X3V 2.4GHz 6CH 3-AXIS Flybarless LCD RC Helicopter RTF

Characteristic of SKY-X303V

1. Can fly flybarless system helicopter
2. Sensitivity and response rate can be adjusted
3. 3-Axis system to make the helicopter more stable
4. Computer programing set parameters(through 3-Axis system computer programing USB cable)
5. Change flight mode: long press the receiver buttion, let go after the indicator light change color(green: beginner
mode, red: 3D flight mode)
6. Can upgrade the newest program by computer

SKY-X303V Channel name:

1CH: Aileron servo
2CH: Elevator servo
3CH: ESC/Throttle
4CH: Digital servo
5CH: Pitch servo

The identification of the SKY-X303V wire:

"-" negative pole, connect to black wire
"+" positive pole,connect to red wire
"S" signal wire,connect to white(or other color) wire

Instruction for code pairing of transmitter and SKY-X303V:

1. Turn on the transmitter, both green lights flash indicate it can receive code paring,1 minutes limited.
2. Connect receiver, if its lights flash slowly,which means it is in code paring
3. Receiver light will turn to fast flash if code paring successful, do not move the plane until the light remain
stillness.
4. It means no signal if the light not on.

9g Digital Servo

1. Operating Votage: 4.8-6.0 Vots
2. Operating Speed: 0.17sec/60 4.8V
3. Output Torque: >1.0kgf.cm(14.0oz.in)at 4.8V
