You are Looking at

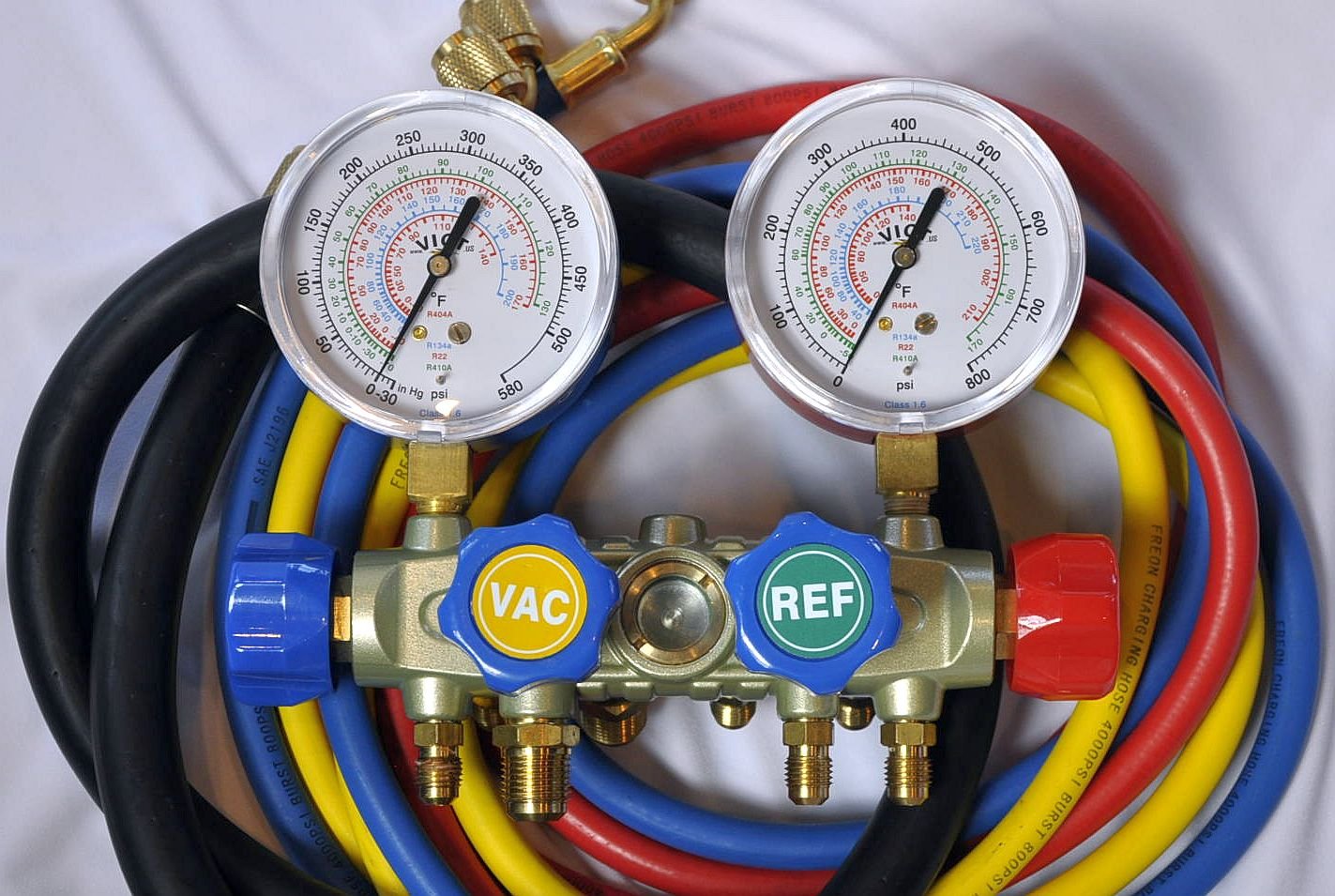

A Newer Design 4-way Manifold Gauge Set
with 4 Valves 4 Hoses; Model GMV4 with Temperature Marked for R410a, R22 R134a and R404a 4-colored Hoses, including a 3/8" Vacuum Hose(black).
FEATURES:
New Design Manifold Gauge with Alluminum Forged Alloy Frame, TOUGHER and Prettier:
4-Valve Manifold for quick evacuation with 3/8 " vacuum port + hose to cut evacuation time by half.
Large, easy-to-read 3 1/8" diameter steel case red and blue; front access for easy field recalibration;
mounted on Newer ergonomic Design, Aluminum alloy Block frame
Color coded Easy to grab big knob control valve handles, double "O"-ring piston for reliability and long service life.
a sight viewing glass on the block to see the inside action during charging/diagnosis/recovery
all hose ports and anchors are 1/4" except the big black one, which it 3/8"
SS Hose anchor on top of the block.
a Schroeder/Schrader valve on the service line, if you need to add any additive to the system.
Pressure in PSI
Temperature in °F for these refrigerants: R410A, R22, R404A, making this manifold one set does it all.
Heavy duty SS hook included
Come with: 3 Color Coded High Pressure Hose set and a black vacuum hose:
60 inch in length each on RYB,
800 PSI working pressure; 4000 PSI burst pressure
1/4" female SAE brass fitting to the gauge block
1/4 " female SAE brass fitting on the service side with a 45 degree turn for easy access.
36 inches on big Black hose
3/8 " SAE flair on both ends, big hose for a faster evacuation.
Teflon O-ring washer provide the best seal and the most durability)
a package of hose seal repair kit included
Note: use adapters: CV23p for 5/16" systems. Or use gauge set modeled: GM410 which come with 5/16" fittings.
