Three Output Traffic Controller / Sequencer
Model# MICRO-3 (in Plastic PCB carrier)
with PED Firmware

Wiring Diagram:
http://www.joezgarage.com/MICRO3PED.pdf

Supports both "WALK DON'T" and "WALK DON'T WALK" incandescent lamp based PED signals.

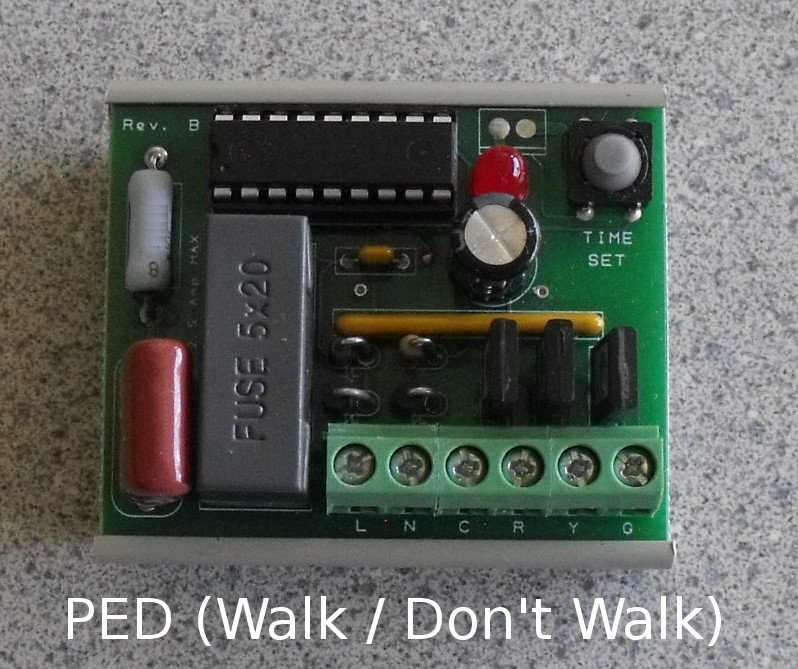

If you have a Walk/Don't Walk PED 2-light signal hanging in your game room, basement, garage, etc. and would like to make it operate like a REAL PED light, you are in the right place. Measuring only 2-1/8" X 1-7/8" (Plastic Carrier Dimensions), this board fits easily into a standard traffic signal.

Sequence:
Step #1: Walk (green)
Step #2: Flashing Don't Walk (flashing red)
Step #3: Solid Don't Walk (solid red)
(repeat)

Features:
Fully Independent light-times:
Walk and Don't Walk timing does not have to be the same

Extended cycle timing range from 1/2 second to over 20 MINUTES per step
Ultra Compact Size (Approx. 2" X 2")
Screw-Terminal connections, eliminating the need for soldering
100 Watts Max per output channel
LED compatible (120 vac)
Simple TIME-SETTING procedure
Wiring Diagram is Included (download PDF )
User-replaceable fuse (Type GMA 2 - 2.5A)
All solid-state on-board switching electronics
120 VAC 60HZ standard voltage operation
Retains timing even if power is removed

OVERVIEW
Each steps timing can be set differently, with a possible range of 1/4 second to 20 minutes PER STEP.

The fuse is user replaceable. Fuse type is GMA 2A - 2.5A 125/250VAC available from any local Radio Shack or Electronic store.

MOUNTING:
The plastic carrier can be adhered to any flat, non-porous surface with double sided sticky tape.

Every unit is fully tested before shipment. A wiring diagram is included with circuit board.

WARNING: Basic electrical wiring skills for this item are required.
Familiarity with 120 VAC / High Voltages is also required.
Improper wiring of this unit can result in an electrical shock.


Controller / Sequencer Specifications
Range (Min - Max)
Operating Voltage: 108 - 120 VAC
Output Channels:
2 light signal: Walk, Don't Walk
Total Wattage per output channel: 100 watts @ 120VAC
Walk Timing Range: From 1/2 second to 20 MINUTES
Don't Walk (Flashing) Timing Range: From 1/2 second to 20 MINUTES
Don't Walk (Solid) Timing Range: From 1/2 second to 20 MINUTES

Setting timing overview...
Using a plastic pen or similar non-conductive item, press and hold down TIME-SET button for 5 seconds until TIME-SET-LED comes on, then release button.
Press and release the TIME-SET button when you want the signal to advance to the next light. Do this for each light.
Once the last step is set, the TIME-SET-LED will turn off and the controller will start normal operation.

note: The new time settings will remain in memory EVEN IF POWER IS REMOVED.

Wiring Diagram:
http://www.joezgarage.com/MICRO3PED.pdf
