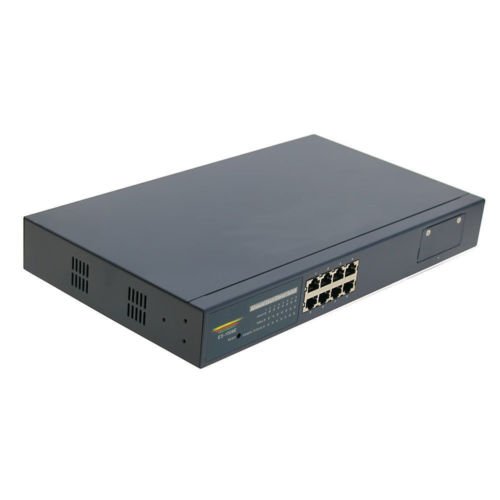

ES-1008E Advanced Smart Ethernet Switch, implemented 8 10/100Mbps TP+ 1 module slot supporting Gigabit and Fast Ethernet modules, is a standard switchthat meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet and Ethernet specifications.The switch can be managed through RS-232 serial port via directly connection, orthrough Ethernet port using Telnet or Web-based management unit. The networkadministrator can logon the switch to monitor, configure and control each port’sactivity in a friendly way. The overall network management is enhanced and thenetwork efficiency is also improved to accommodate high bandwidth applications. Inaddition, ES-1008E features comprehensive and useful function such as QoS(Quality of Service), Spanning Tree, VLAN, Port Trunking, Port Security,SNMP/RMON and IGMP Snooping capability, Failover and Illegal Access Report viathe intelligent software. It is suitable for both metro-LAN and office application.QoS:Support Quality of Service by the IEEE 802.1P standard. There are twopriority queue and packet transmission schedule using Weighted RoundRobin (WRR). User-defined weight classification of packet priority can bebased on Either a VLAN tag on packet or a user-defined port prioritySpanning Tree:Support IEEE 802.1D, IEEE 802.1w (RSTP: Rapid Spanning TreeProtocol) and IEEE 802.1s (MSTP: Multiple Spanning Tree Protocol)standards.VLAN:Support Port-based VLAN, IEEE802.1Q Tag VLAN and IEEE802.1vProtocol-based VLAN. Support 64 active VLANs and VLAN ID 1~4094.Port Trunking:Support static port trunking and port trunking with IEEE 802.3ad LACP.Port Security:Support allowed, denied forwarding and port security with MAC address.IGMP Snooping:Support IGMP version 2 (RFC 2236): The function IGMP snooping is used toestablish the multicast groups to forward the multicast packet to the memberports, and, in nature, avoid wasting the bandwidth while IP multicast packetsare running over the network.Illegal Access Report:Support Illegal Access Report function to display the unauthorized users accessing ES-1008E. If Allowed forwarding or Denied forwarding wasconfigured, Illegal Access Report starts recording which illegal user(s) try to access.There is one slot used for high-speed connection expansion; six optional module types provided for ES-1008E are listed below:10/100/1000Base-T Gigabit Copper Module (RM-2024.0.111)1000Base-SX Gigabit Fiber Module (RM-2024.0SC.202)1000Base-LX/LHX/XD/ZX Gigabit Fiber Module, up to 70Km (RM-2024.0SC.212.xx)100Base-FX 100Mbps Fiber Module, up to 100Km (RM-2024.0SC.211.xx)100Base-FX Single Fiber WDM Module (RM-2024.0BS.611.xx)1000Base-LX Single Fiber WDM Module (RM-2024.0BS.621.xx)10/100/1000Base-T Gigabit Copper Module fully complies with IEEE802.3/u/x/z Gigabit, Fast Ethernet specifications. 1000Base-SX/LX/LHX/XD/ZXGigabit Fiber Module is a Gigabit Ethernet port that fully complies with all IEEE802.3z and 1000Base-SX/LX/LHX/XD/ZX standards. 100Base-FX Fiber Module is a100Mbps Ethernet port that fully complies with all IEEE 802.3u and 100Base-FX standards.100Base-FX/1000Base-LX Single Fiber WDM Module is designed with anoptic Wavelength Division Multiplexing (WDM) technology that transports buyirectional full duplex signal over a single-strand fiber. 1 x 8 Port Switch1 x Rs232 cable1 x Power Cord1 x CD ( manual )
