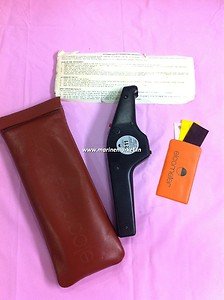

shayonaelect Store ElcoMeter 211The Elcometer 211, commonly referred to as the “Banana Gauge”, has proven to be a successful coating thickness gauge where the use of electronic instruments is difficult, e.g. inflammable atmospheres in oil and gas production.The “V” grooved base, rubber feet and clear scale, with its ranges for thicker coatings, make this one of the most popular mechanical gauges in the world.Factory calibrated - with user calibration adjustmentFoils supplied to check calibration on siteIdeal for cold surfaces and underwater useSmall and portable with an accuracy ±5%Technical SpecificationPart NumberDescriptionRangeA211F--1MElcometer 211 Coating Thickness Gauge0 - 1000μmA211F--8MElcometer 211 Coating Thickness Gauge0.65 - 6mmA211F--1EElcometer 211 Coating Thickness Gauge0 - 40milsA211F--8EElcometer 211 Coating Thickness Gauge25 - 250milsAccuracy±5% of the reading or ±2.5μm/0.1mil (whichever is the greater)Substrate Thickness0.4mm (16mils) minimumMeasurement Area30mm (1.18”) Diameter minimumMeasurement Diameter20mm (0.8”) minimumEdge EffectsMust be at least 6mm (0.24”) from edgeDimensions200 x 60 x 30mm (7.8 x 2.4 x 1.2”)Packing ListElcometer 211, calibration foil set, carry pouch, neck harness and operatinginstructions
