Rated current 30A
Rated operating voltage 12V/2V adaptive
Solar panel voltage ≤ 48V
Float voltage 13.8V/27.6V
Undervoltage protection 10.7V/21.4V
Undervoltage recovery 12.5V/25.0V
Load loss ≤ 15mA
Voltage drop ≤ 160mV
MPPT + PWM charging mode
Temperature compensation -4mV/Cell / ℃
Operating temperature -10 ℃ ~ 60 ℃
Storage temperature -30 ℃ ~ 70 ℃
Humidity ≤ 90%, non-condensing
Overall dimensions 90 mm × 188 mm × 48 mm
Mounting hole spacing 60 mm × 178 mm - Φ5
Weight ≤ 460g

This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.


Product introduction

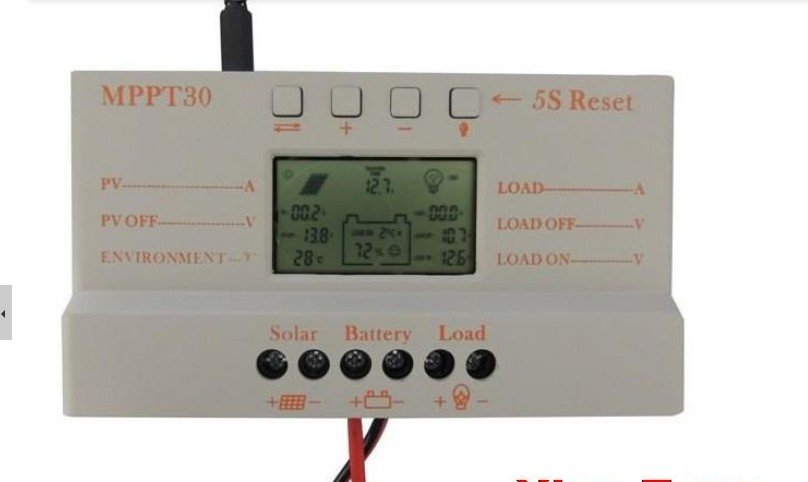

Solar LCD series a kind of intelligent, multi-purpose solar charge and discharge controller

LCD screen display
Battery reverse discharge protection
Easy operation interface
Battery reverse polarity protection
MPPT+ PWM charging mode
Battery under voltage protection
Parameter user can reset
Overload, short-circuit protection
A key to open and close the load
Automatic temperature compensation function
A key to restore the factory settings
USB 5V charging (for 500mA) for mobile phone
