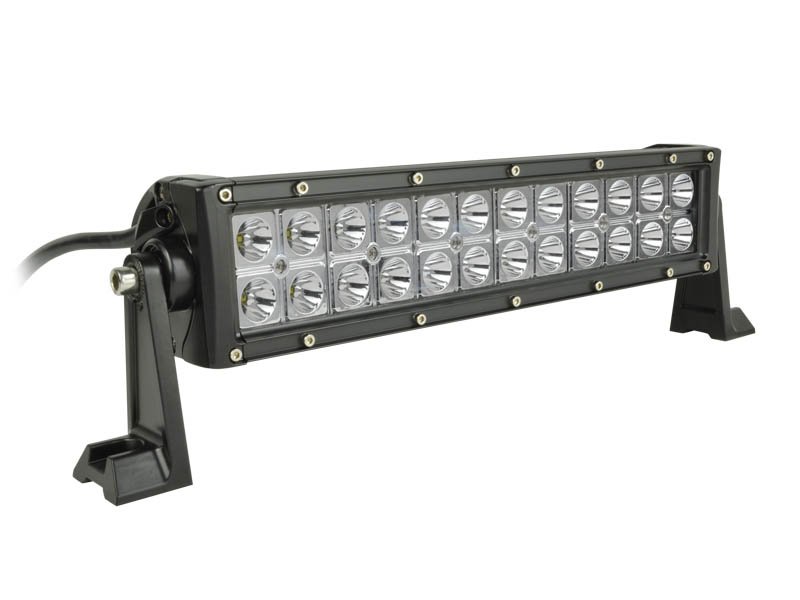

Features:


1.deep, expansive heat sink vanes to quickly and efficiently dissipate heat - a colder LED is a brighter LED
2.power wire is side mounted for ease of installation
3.LEDs are fixed in clusters of 4 by a screw - can be changed/swapped out easily by operator
4.pivot joint between mounting foot and screw hole is notched so any degree (tilt) can be achieved and secured
5.mounting feet can be secured facing inwards or outwards for 2 possible mounting hole dimensions(see photos)
6.Hardcoated Polycarbonate plate is thicker than the industry standard to protect LEDs
7.CREE is a market leading innovator of lighting class LEDs and LED lighting
8.CREE XLAMP LEDs far outperform any other LED lamps on the market today (whiter, more power efficient, BRIGHTER)

Specifications:


Lumen Flux : 5280 Lumen
Input Voltage : 9-32 Volts DC
Power Consumption : 72 Watts
AMP Draw : 4.2 Amps @ 12 Volts / 2.1 Amps @ 24 Volts
Dust and Waterproof rating : IP 67 certified
24 x 3 Watt CREE XLAMP High Output LED Bulbs
Body Color : Black
Emitter Temperature : 5500-6000 Kelvin
Material : Diecast Aluminum housing
Integrated Microprocessor for Thermal Management
Reverse Battery and transient voltage suppressor technology
Lens material : Hardcoated Polycarbonate prevents chips and cracks
Mounting Bracket : Solid Aluminum alloy (not hollow, or indented like others)
Beam : Combination - flood pattern / spot pattern
Spot or Flood beam patterns are available.
50,000 hour LED life expectancy
Operating Temperature : -40 to 50 Degrees Celcius
Two mounting directions for footings (see images)
Dimensions : 12" (PLEASE SEE PICTURES FOR EXACT MOUNTING HOLE DIMENSIONS)


Compared old generation two row led light bar, the new generation is using:


1. CREE instead of Epistar, more stable quality of led chip.

2. Perfect water proof by rubber strip sealed around the edge of the cover.

3. The appearance and design shape is more popular in the market.
