$419.70
Add to Cart
EG651P-VE Power Supply PSU ATX P4 XEON
Only 1 available
Details
Shipping: Australia: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Thank you for shopping ECrater!
Working System Pull -
Some scratches and signs of use - still good cosmetic condition.
Tested - fully working; Functioning fan, all voltage rails within specification - great power supply, very very powerful and quiet.
Will be packed very well and arrive quickly.

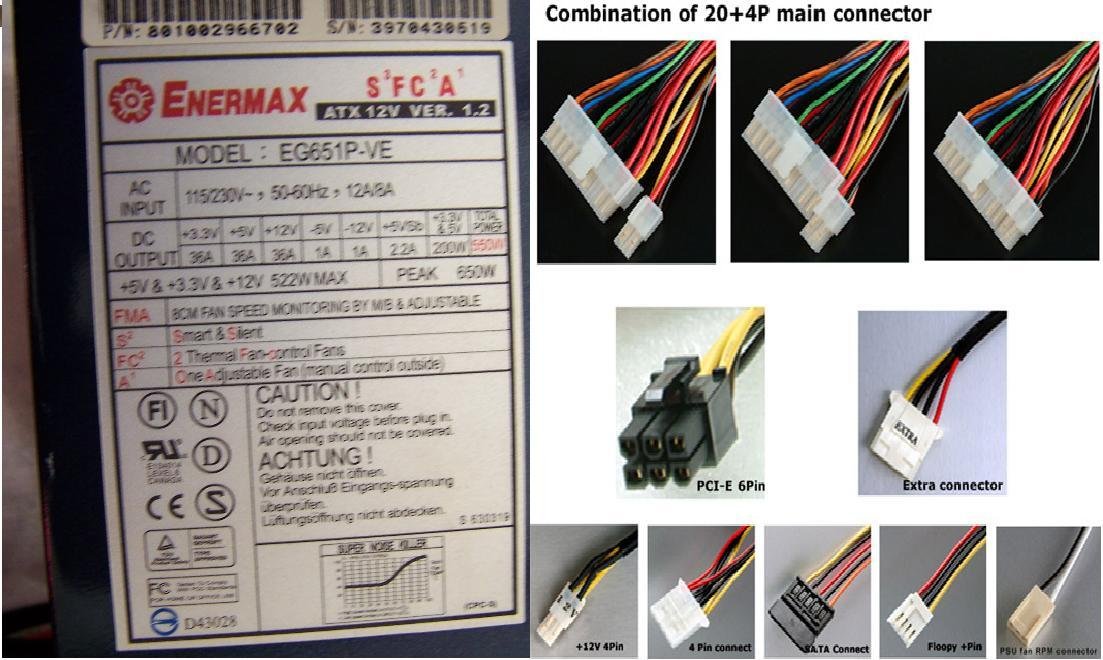

Enermax (by Coolergiant) EG651P-VE V2.01 (24P) FM 24P Series 550W ATX Power Supply ATX 12 Ver 2.01 SATA, PCI-Express, Dual Fan Quiet for Dual Xeon, AMD MP, Intel P4, AMD XP, K8 CPU: EG651P-VE (24P) (20/24 Pin, Retail!) (Discontinued)
CSPSEMEG651P$129.96
Enermax (by Coolergiant) EG651P-VE V2.01 (24P) FM 24P Series 550W ATX Power Supply ATX 12 Ver 2.01 SATA, PCI-Express, Dual Fan Quiet for Dual Xeon, AMD MP, Intel P4, AMD XP, K8 CPU: EG651P-VE (24P) (20/24 Pin, Retail)
Features:
* "Low noise & Ultra Cool" thermal control power supply with dual fans solution recommended by "AMD™ System Cooling Guidelines".
* Support dual Intel Xeon & AMD MP CPU Server/Workstation board.
* FM Function-allows system to monitor power supply for 8cm fan rpm.
* Thermal controlled8cm 9cm fan rpm auto adjusting bases on temp detected inside power supply.
* Support Intel P4 and AMD XP & K8 CPU with
Enhance +12V output
+12V and Aux power connector
* Safety Approvals: UL, cUL,TUV, DEMKO, NEMKO, SEMKO, FIMKO.
* EMC Approvals: CE, FCC, CNS directives.
* Dimension W150 x H86 x D140 (mm)
* Adapters for 3 in 1 (EPS +12V, ATX-GES, ATX):
- EPS12V To AMD ATX GES
- EPS12V To ATX 12V
Product Specification:
I/P
Voltage rating: 90V~135V AC or 180V~265V AC
(selected by slide switch)
Iin=115/230Vac: 13A / 8A
Frequency: 47Hz~63Hz
Inrush current: 60A max./230V (at cold start)
O/P
DC Voltage Ripple & Noise Total Reg. Output current rating
Min. / Max.
+3.3V 50mV ±4% 0.3A / 36A
+5V 50mV ±5% 0.3A / 36A
+12V 120mV ±5% 1.5A / 36A
-5V 50mV ±10% 0A / 1A
-12V 120mV ±10% 0A / 1A
+5Vsb 50mV ±5% 0.1A / 2.2A
+3.3V & +5V 200W
TOTAL O/P 550W
Type ATX
Storage Temperature -20ºC ~80ºC
Operation Temperature 0ºC ~25ºC for full rating of load, decrease to zero Watts O/P at 70ºC
Cooling Air convection by +12V DC fan
Hold-up Time 17ms min. at 230V AC full load
Efficiency 70% min. at full load
Over Voltage Protection +5V: 5.6V~6.9V
+3.3V: 3.7V~4.5V
+5Vsb: 5.6V~6.9V
Over Power Protection 105%~140% of max load
Humidity Operating: to 85% relative humidity ,
non-condensing At 25ºC
Storage : to 95% relative humidity ,
non-condensing At 50ºC
Output +3.3V@35A, +5V@35A, -5V@1A, +12V@33A, -12V@1A, [email protected]
MTBF 100K hours at 25ºC, 70% full rated load
EMC EN55022, Class B
FCC Class B
IEC 801-2, 3, 4, 5, 6, 8, 11
Warranty 1 Year Manufacturer
Working System Pull -
Some scratches and signs of use - still good cosmetic condition.
Tested - fully working; Functioning fan, all voltage rails within specification - great power supply, very very powerful and quiet.
Will be packed very well and arrive quickly.
Enermax (by Coolergiant) EG651P-VE V2.01 (24P) FM 24P Series 550W ATX Power Supply ATX 12 Ver 2.01 SATA, PCI-Express, Dual Fan Quiet for Dual Xeon, AMD MP, Intel P4, AMD XP, K8 CPU: EG651P-VE (24P) (20/24 Pin, Retail!) (Discontinued)
CSPSEMEG651P$129.96
Enermax (by Coolergiant) EG651P-VE V2.01 (24P) FM 24P Series 550W ATX Power Supply ATX 12 Ver 2.01 SATA, PCI-Express, Dual Fan Quiet for Dual Xeon, AMD MP, Intel P4, AMD XP, K8 CPU: EG651P-VE (24P) (20/24 Pin, Retail)
Features:
* "Low noise & Ultra Cool" thermal control power supply with dual fans solution recommended by "AMD™ System Cooling Guidelines".
* Support dual Intel Xeon & AMD MP CPU Server/Workstation board.
* FM Function-allows system to monitor power supply for 8cm fan rpm.
* Thermal controlled8cm 9cm fan rpm auto adjusting bases on temp detected inside power supply.
* Support Intel P4 and AMD XP & K8 CPU with
Enhance +12V output
+12V and Aux power connector
* Safety Approvals: UL, cUL,TUV, DEMKO, NEMKO, SEMKO, FIMKO.
* EMC Approvals: CE, FCC, CNS directives.
* Dimension W150 x H86 x D140 (mm)
* Adapters for 3 in 1 (EPS +12V, ATX-GES, ATX):
- EPS12V To AMD ATX GES
- EPS12V To ATX 12V
Product Specification:
I/P
Voltage rating: 90V~135V AC or 180V~265V AC
(selected by slide switch)
Iin=115/230Vac: 13A / 8A
Frequency: 47Hz~63Hz
Inrush current: 60A max./230V (at cold start)
O/P
DC Voltage Ripple & Noise Total Reg. Output current rating
Min. / Max.
+3.3V 50mV ±4% 0.3A / 36A
+5V 50mV ±5% 0.3A / 36A
+12V 120mV ±5% 1.5A / 36A
-5V 50mV ±10% 0A / 1A
-12V 120mV ±10% 0A / 1A
+5Vsb 50mV ±5% 0.1A / 2.2A
+3.3V & +5V 200W
TOTAL O/P 550W
Type ATX
Storage Temperature -20ºC ~80ºC
Operation Temperature 0ºC ~25ºC for full rating of load, decrease to zero Watts O/P at 70ºC
Cooling Air convection by +12V DC fan
Hold-up Time 17ms min. at 230V AC full load
Efficiency 70% min. at full load
Over Voltage Protection +5V: 5.6V~6.9V
+3.3V: 3.7V~4.5V
+5Vsb: 5.6V~6.9V
Over Power Protection 105%~140% of max load
Humidity Operating: to 85% relative humidity ,
non-condensing At 25ºC
Storage : to 95% relative humidity ,
non-condensing At 50ºC
Output +3.3V@35A, +5V@35A, -5V@1A, +12V@33A, -12V@1A, [email protected]
MTBF 100K hours at 25ºC, 70% full rated load
EMC EN55022, Class B
FCC Class B
IEC 801-2, 3, 4, 5, 6, 8, 11
Warranty 1 Year Manufacturer
