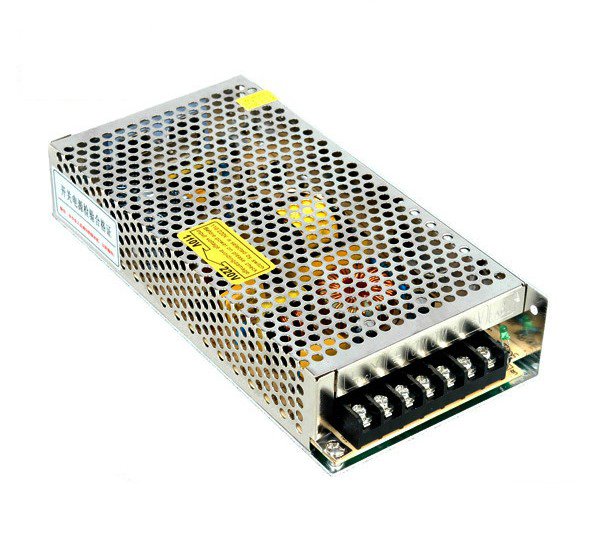

Regulated Switching Power Supply S-120-12 12VDC Output 10A 120W

If you need other output voltage, please contact with us!!!

Features:
Low price and high reliability
105℃ output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effecticly
With short -circuit and overload protection
Compact size, light weight
100% full-load buming test
Installed with EMI filter,minimum wave



DC Output Voltage:12VDC;
Output Voltage Error:+/-1%;
Rated Output Current:10A
Output Current Range:0~10Amps;
Output Power:120Watts;
Ripple And Noise: 120mvp-p;
Inlet Stability:+/-0.5%;
Load Stability:+/-0.5%;
Input Voltage Range: 90~132VAC/180~264VAC,255~373VDC;Frequency:47~63Hz;
AC Input Current:1.6A/115V,0.8A/230V;
Efficiency:82%;
AC Inrush Current: Cold-Start Current:
20A/115V,40A/230V;
Working Temperature And Humidity:-10 Degree C~+60Degree C, (refer to output rating curve )20%~90% RH;
Storage temperature and humidity:-20 Degree C~+85 Degree C, 10%~95% RH;
Leakage Current：＜3.5 mA/240VAC；
Vibration: 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes；
Withstand voltage: Input and output internal: 3KvAC,Input and enclosure:1.5KvAC,Output and enclosure:0.5KvAC ；
Isolation resistance: Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ；
Overall dimension: 159*97*38mm；
Standards: CE.
