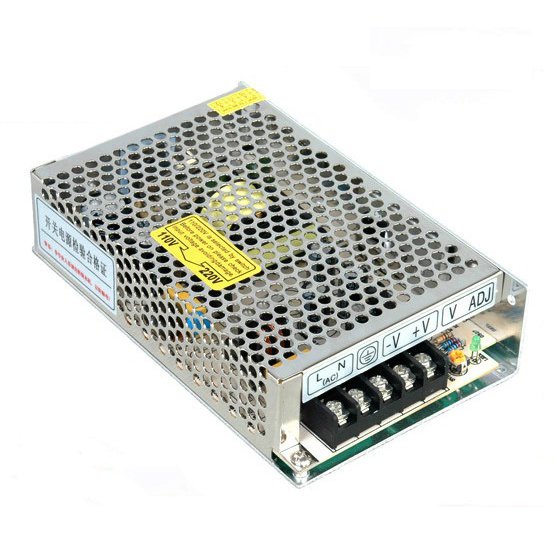

12V Single Output 6.3A 75W Power Supply 90~264V Adjustable Voltage Regulated Switching

Features:
High efficiency, high reliability
Universal AC input / Full range
100% full load burn-in test
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection


DC Output Voltage:12VDC;
Output Voltage Tolerace:+/-1%;Output Current: Amps 7.5;
Output Current Range:0~7.5Amps;
Output Power:75.6Watts;
Ripple And Noise: 100mvp-p; Voltage Range:+/-10%;
Input Voltage Range: 90~132VAC/180~264VAC,255~373VDC;Frequency:47~63Hz;
AC Input Current:1.6A/115V,0.8A/230V;
Efficiency:82%;
AC Inrush Current: Cold-Start Current:
20A/115V,40A/230V;
Working Temperature And Humidity:-10 Degree C~+60Degree C, (refer to output rating curve )20%~90% RH;
Storage temperature and humidity:-20 Degree C~+85 Degree C, 10%~95% RH;
Leakage Current：＜3.5 mA/240VAC；
Vibration: 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes；
Withstand voltage: Input and output internal: 3KvAC,Input and enclosure:1.5KvAC,Output and enclosure:0.5KvAC ；
Isolation resistance: Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ；
Overall dimension: 159*97*38mm；
Standards: CE.
