$21.68 On Hold

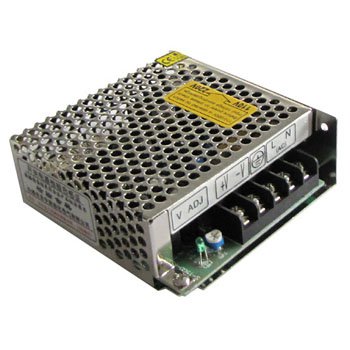

LED DC Power Supply S-15-5,5VDC,15Watts,Amps3

More than 10 available

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

LED DC Power Supply S-15-5,5VDC,15Watts,Amps3;
DC Output Voltage: 5VDC;
Output Voltage Tolerace: +/-2%;
Output Current: Amps 3;
Output Current Range: 0~3A;
OutputPower: 15Watts;
Ripple And Noise: 80mvp-p;
Voltage Range: -9%~+10%;
Input Voltage Range: 85～132 VAC / 170～264 VAC47～63 Hz；selected by switch 240 370VDC;
Frequency: 47~63Hz;
Efficiency: 68%;
AC Current: 0.5A/115V,0.25A/230V;
AC Inrush Current: Cold-Start Current: 15A/115V,30A/230V; Storage temperature and humidity:-20 ℃~+85 ℃, 10%~95% RH;
Leakage Current : ＜3.5mA/240VAC ;
Working Temperature And Humidity: -10 ℃~+60 ℃, (refer to output rating curve)20%~90% RH; Vibration: 10～500Hz，2G 10min./1cycl, period for 60 min, each along X, Y, Z, axes;
SAFETY Withstand Voltage: I/P-O/P:1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC;
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC ;
STANDARD Safety Standard : Design refer to
UL1012 ;
EMC Standard: Design refer to FCC Part15 J Conduction Class B ;
Setup,Rise,Hold Time : 200ms,100ms,30ms at full load ;
Standards: CE.
