$1.40 Add to Cart

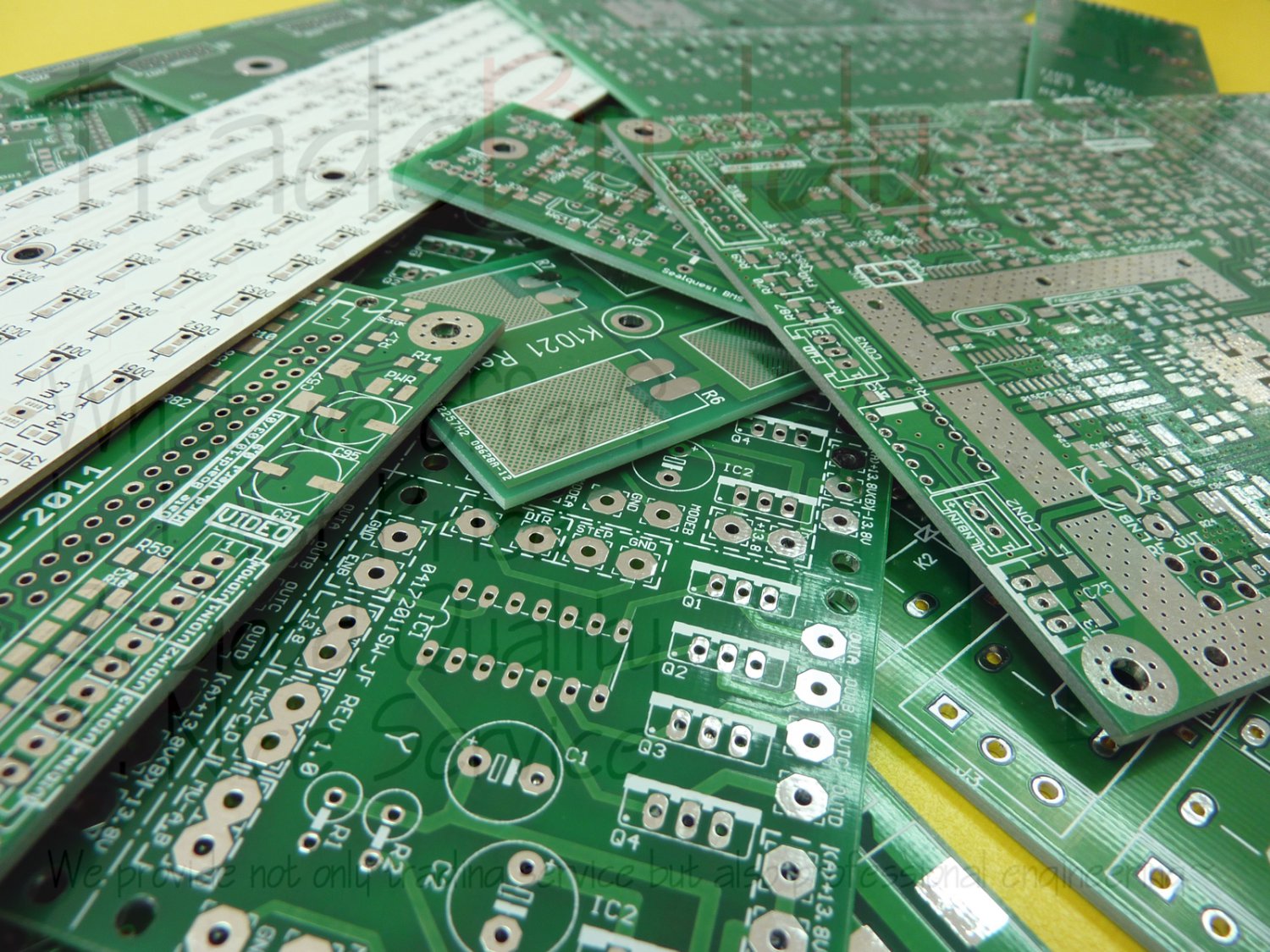

High Quality Single, Double or Multiple Layer PCB Prototype and PCB Fabrication

High Quality Single, Double or Multiple Layer PCB Prototype and PCB Fabrication

More than 10 available

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

  • High Quality Single, Double or Multiple Layer PCB Prototype and PCB Fabrication
  • High Quality Single, Double or Multiple Layer PCB Prototype and PCB Fabrication
  • High Quality Single, Double or Multiple Layer PCB Prototype and PCB Fabrication
  • High Quality Single, Double or Multiple Layer PCB Prototype and PCB Fabrication
  • High Quality Single, Double or Multiple Layer PCB Prototype and PCB Fabrication

Production Capability

*Files Types: Gerber 274-X, 274 and aperture file.

*Material: FR - 4.

*Layer Count: 1 - 30.

*Maximum Panel Size: 55 cm x 110 cm.

*Board Size Tolerance: +/- 0.2 mm.

*Board Thickness: 0.4 mm - 2.4 mm.

*Board Thickless Tolerance: +/- 10%.

*Minimum Line Width and Spacing: 0.1524 mm.

*Minimum Hole Diameter: 0.3 mm.

*Surface Finish: Immersion Gold / Electrolytic Gold / HASL(Sn/Pb) / HASL Lead free.

*Standard Lead Time: 4 - 7 business days.

----------------------------------------------------------------------------------------------------------------------------------------------

Order Steps

*Send the gerber files, fabrication drawings, desired quantities and other demands to "[email protected]".

*We will perform a DFM (Design for Manufacturing) checking and e-mail you our quotation including lead time, ship time and payment instruction in short.

*We will then confirm your payment and start the fabrication right away.

*Once the board has been finished, we will ship it via your chosen method and inform you the shipping tracking number if applicable.
