Model: BH-SOLA02 Weight: 350g

Description:
This solar charge controller is designed for solar DC power supply system. MCU and professional software are applied as the control center to fulfill intelligent system control. LED will indicate the working state. It's easy to turn on and turn off output through manual operation. And there are two optional voltage modes, 12V and 24V. It's good for street and pathway lighting, parking area, bus station and signage and etc.

Features:

Microcontroller digital accuracy
PWM charge mode & State of Charge(SOC)
Fully automatic operation & Electronic protections
Detects day and night using the PV array, timer setting
Double digital LED display, numbers equal to timer setting
Temperature compensation, with external temperature sensor
Big terminals, big distance between terminals

Introduction:
MCU and professional software are used as the control center to fulfill intelligent system control, along with PWM high efficiency charging way. Boost, recovery and float charging auto work for battery long-life and with temperature compensation. It has high accuracy over discharging control by the discharging rate, over-discharging control voltage modified by the battery discharging rate curve. Our controller has the function of self protection from overload, outside and inside short circuit, reverse connection, thunder and lightning, PV panel reverse current, over charging and discharging etc. During the short circuit and overload protection, no any component will be damaged and need change, including fuse. The LED will indicate the working state of the system in charging, overcharging power full, power low, over-discharging, over load, out short circuit, load on/off and etc. Our products meet the industrial production standard with wide temperature running area -35℃ to +55℃.

Package Include:

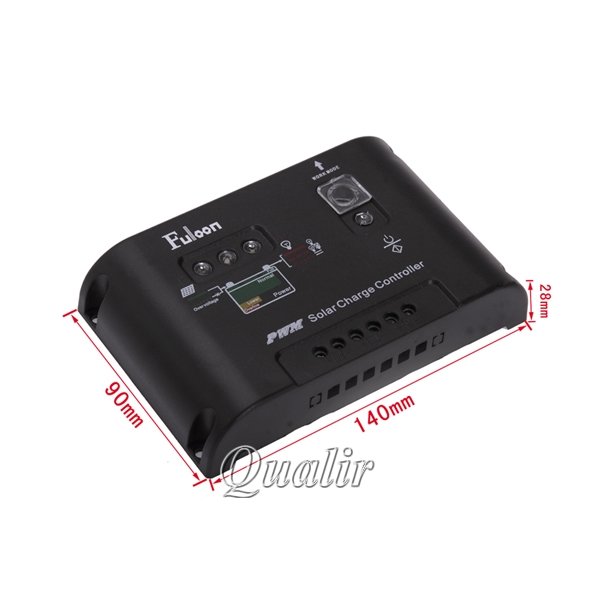

1x 10A 12/24V Solar Charge Controller
1x User Manual
