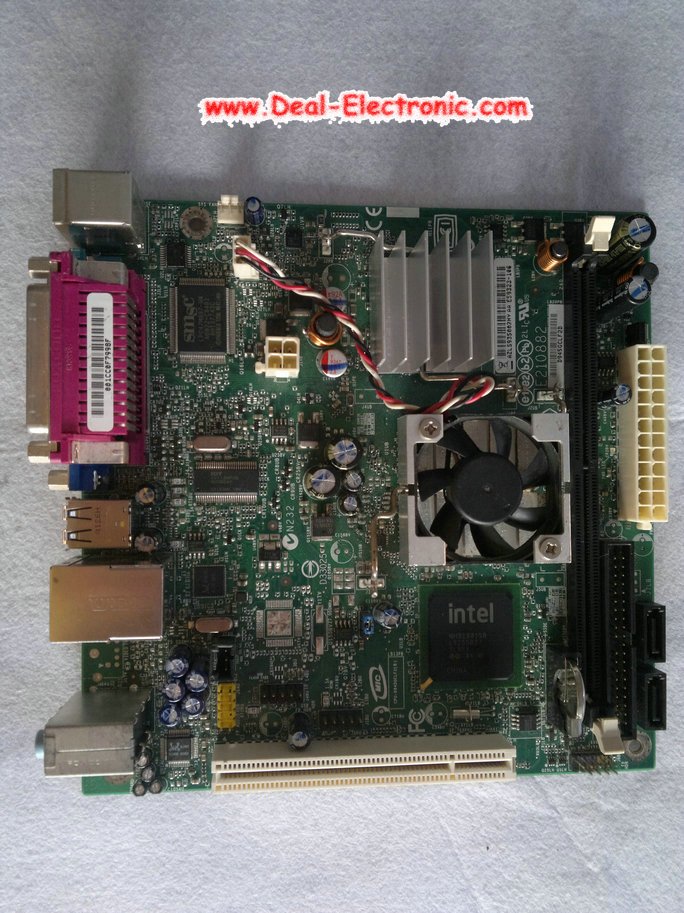

motherboard for intel 945GCLF2D desktop mainboard LGA 755 Mini-ITX system board DDR2 free shipping
Product Information:
The Intel Desktop Board D945GCLF2D is designed to support Internet-centric computing, delivering incredible capabilities in the flexible mini-ITX form factor. Featuring the integrated 45nm Intel Atom processor, this board is an energy-efficient solution for home users as well as for unique vertical markets. Designed with Intel's leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.

Product Identifiers
Manufacturer Intel
Model D945GCLF2D with Integrated Intel Atom Processor
MPN BOXD945GCLF2D
UPC 0675900998476, 0735858207195

Key Features
Product Type Motherboard
Form Factor Mini ITX / micro ATX
Width 17.1 cm
Depth 17.1 cm
Chipset Type Intel 945GC Express
Data Bus Speed 533 MHz
BIOS Type Intel
Storage Controllers ATA-100, Serial ATA-300
Power Connectors 20-pin main power connector, 4-pin ATX12V connector

Processor
Installed Qty (Max Supported) 1 ( 1 )
Type Atom
Manufacturer Intel

Memory
RAM Installed / Max 0 MB / 2 GB (max)
Supported RAM Speed PC2-4300, PC2-5300

Video
Graphics Controller Intel GMA 950 Dynamic Video Memory Technology 3.0

Audio
Audio Output Type Sound card
Audio Codec Realtek ALC662
Sound Output Mode 5.1 channel surround
Compliant Standards High Definition Audio

Telecom / Networking
Modem Type None
Networking Type Network adapter
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet

Features
BIOS Features ACPI support, SMBIOS support, rapid BIOS boot
Sleep / Wake Up Features Keyboard wake up, mouse wake up, wake on PCI device, wake on USB port
Hardware Monitoring CPU core temperature, CPU fan tachometer, chassis fan tachometer, chassis temperature, system voltage

Expansion / Connectivity
Storage Interfaces ATA-100 - connector(s): 1 x 40pin IDC - 2 device(s), Serial ATA-300 - connector(s): 2 x 7pin Serial ATA - 2 device(s)
Interfaces 1 x audio - line-in - mini-phone 3.5 mm, 1 x audio - line-out - mini-phone stereo 3.5 mm, 1 x display / video - VGA - 15 pin HD D-Sub (HD-15), 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style), 1 x microphone - input - mini-phone 3.5 mm, 1 x mouse - generic - 6 pin mini-DIN (PS/2 style), 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45, 1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25), 1 x serial - RS-232 - 9 pin D-Sub (DB-9), 4 x Hi-Speed USB - 4 pin USB Type A
Additional Connectors 4 x Hi-Speed USB

Miscellaneous
Cables Included 1 x IDE cable, 2 x Serial ATA cable
Software Included Intel Express Installer
