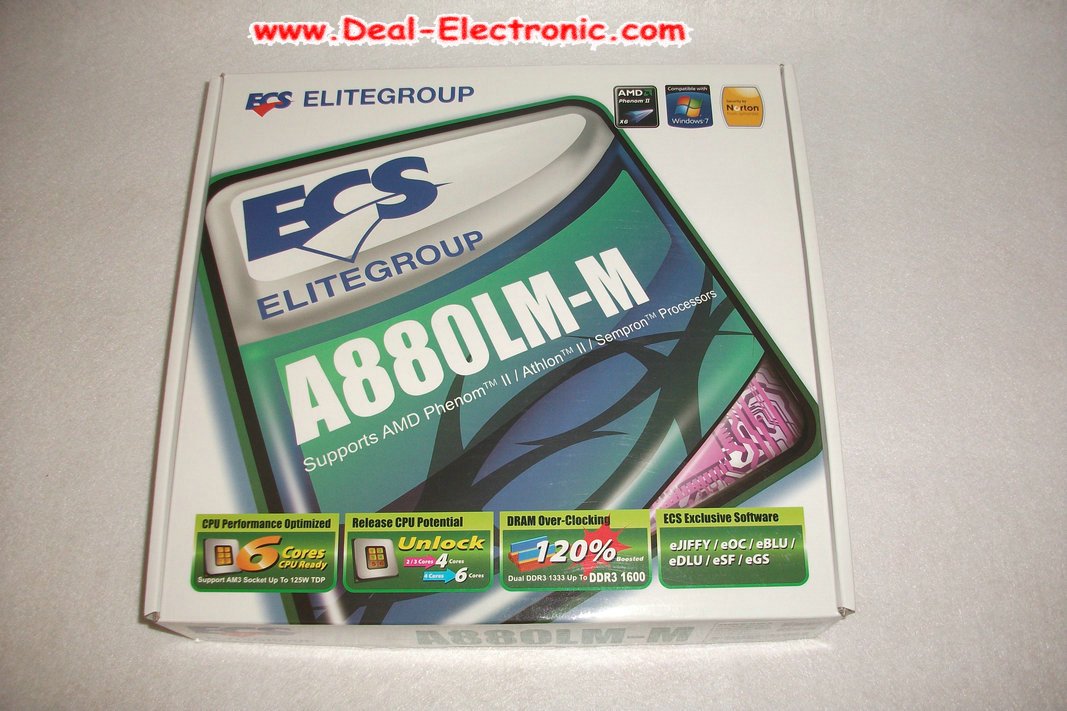

For ECS motherboard A880LM-M Mirco-ATX AMD 760G Computer socket AM3 DDR3

Product Condition:New
Motherboard chip

Integrated chips: graphics / sound / network card error correction
Chip manufacturers: the AMD correction
Main Chipset: AMD 760G correction
The chipset describe: the AMD 760G North Bridge + SB700 South Bridge chipsetcorrection
Display chip: Integrated ATI Radeon HD3000 graphics core correction
Audio chip: integration of the VIA VT1705 6-channel audio chip error correction
The chip card: onboard the Realtek RTL8105E/8111E Gigabit Ethernet correction
Processor specifications

CPU platform: the AMD correction
CPU Type: Phenom II / Athlon II / Sempron correction
CPU socket: Socket AM3 correction
CPU: support 125W Phenom II X6 processor error correction
Support CPU number: 1 correction
Motherboard bus: the HT3.0 maximum support 5.2GT / s, error correction
Memory specifications

Memory Type: correction of DDR3
Memory slots: 2 x DDR3 DIMMs correction
Memory: Support Dual Channel DDR3 1600 (OC) / 1333/1066MHz memory error correction
Expansion Slots

PCI-E slots: 1 x PCI-E X16 graphics card slots
1 × PCI-E X1 slot correction
PCI slots: 2 x PCI slots correction
IDE slot: 1 x IDE slot correction
SATA Interface: SATA II interface, 5 × correction
I / O interface

USB interface: 10 x USB 2.0 interface (built-in + 6 backplane) error correction
External ports: 1 x VGA interface
1 x DVI interface correction
PS / 2 interface: PS / 2 mouse, PS / 2 keyboard interface error correction
Other Interfaces: 1 x RJ45 network interface
1 x optical interface
Audio interface correction
Plate

Mainboard: Micro ATX form factor correction
Dimensions: 24.4 × 21.0cm correction
Other parameters

Power jack: an 8-pin, one 24-pin power connector correction
RAID functionality: Support for RAID 0, 1, 10 correction
Motherboard attachments

Packing list: manual, driver CD, FDD / IDE data cable, SATA data cable, baffle

All new condition Free Shipping For ECS motherboard A880LM-M Mirco-ATX AMD 760G Computer socket AM3 DDR3 HOT New Arrival!!
