HIM (Honda & Acura Diagnostic System)is the latest diagnostic equipment for Honda vehicles. Diagnostic functions available for vehicles of HONDA/ACURA from year 1992 to2007.Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. It supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform. Very easy to use.

Description:
HIM (Honda & Acura Diagnostic System)is the latest diagnostic equipment for Honda vehicles. Diagnostic functions available for vehicles of HONDA/ACURA from year 1992 to2007.Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. It supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform. Very easy to use.

Functions supported by Honda/Acura protocols:
Reading and decoding fault codes from control blocks memory;
Deleting fault codes;
Displays system current parameters in digital form;
Displays system? current parameters in graphical form;
Combined displaying of data;
Management of executive devices;
Logs keeping - writing and keeping of digital parameters in memory;
Special functions - changing of permissible settings of blocks, programming etc.


Functions supported by OBD-II protocols:
Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once);
Mode $02 - Displays parameters of freeze frame;
Mode $03 - Reading and decoding of fault codes from control block? memory;
Mode $04 - Deleting of fault codes (memory clearing);
Mode $05 - Displays results of oxygen sensors;
Mode $06 - Displays results of changeably controlled systems and components;
Mode $07 - Displays results of constantly controlled systems and components;
Mode $08 - Management of executive devices;
Mode $09 - Displays car identification info.

Hardware and software requirements:
PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later). Hard disk drive with at least 400MB of free space
CD-ROM drive (if a high-speed Internet connection is not available)
RS232 port required to connect PC to HIM (PC version software only)
Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)
Internet connection (high-speed connection recommended)

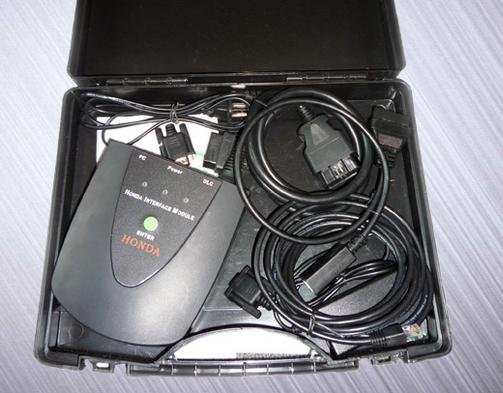

Package Including:
1pc x HIM with OBDII Cable
1pc x DVD
1pc x 3 Pin Cable
1pc x RS232 Cable
