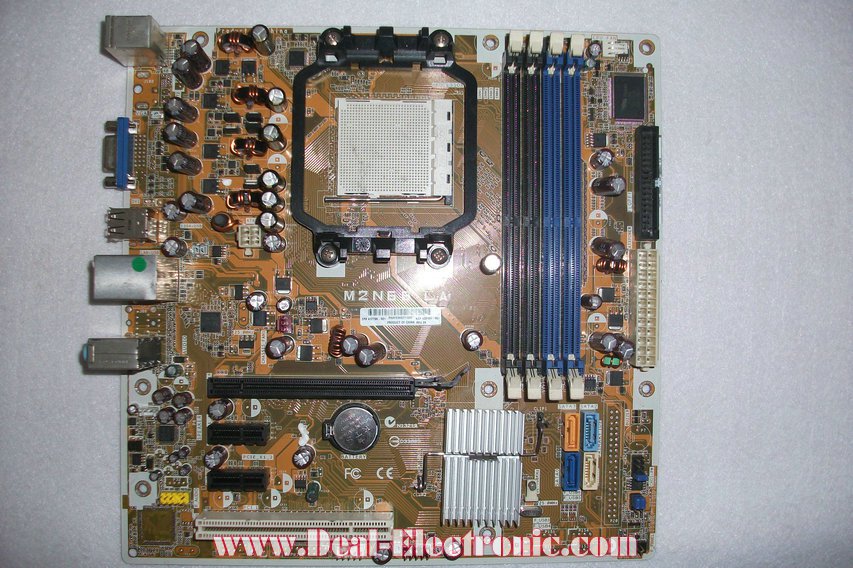

M2N68-LA NARRA3 DX2450M FOR HP MOTHERBOARD 462798-001 459164-001 SOCKET AM2 AMD

Specifications:
NVIDIA GeForce 6150SE nForce 430
Front-side bus speed
2000MT/s (2.0 GT/s)

Processor upgrade information
Socket type: AM2
Motherboard supports the following processor upgrades:

Athlon 64 X2 with Dual Core technology X2 up to 5600+ (up to 89 watt)
Athlon 64 less than 4000+
Sempron less than 3800+



Memory upgrade information
Dual channel memory architecture
Four 240-pin DDR2 DIMM sockets

Supported DIMM types:
PC2-5300 (667 MHz)
PC2-6400 (800 MHz)
Non-ECC memory only, unbuffered
Supports 2GB DDR2 DIMMs
Supports up to 8 GB on 64 bit PCs
Supports up to 4 GB* on 32 bit PCs
32 bit PCs cannot address a full 4.0 GB of memory.
Video
Integrated graphics using nVidia GeForce 6150SE
Integrated video is not available if a graphics card is installed.
Integrated graphics using nVidia GeForce 6150SE
Also supports PCI Express x16 graphics cards*

Audio
Integrated Realtek ALC888S Audio
8 channel high-definition audio
Audio CODEC: ALC888S
Network
LAN: 10-Base-T
Interface: Integrated into motherboard
Technology: Realtek RTL8201N
Data transfer speeds: up to 10/100Mb/s
Transmission standards:10-Base-T Ethernet
Expansion Slots
One PCI Express x16
Two PCI Express x1
One PCI
I/O Ports
Back I/O ports
Back I/O panel
PS/2 mouse (green)

Video Graphics Adapter
RJ-45 Network (LAN)
Audio: Line In (light blue)
Audio: Line Out (lime)
Audio: Side Speaker Out (gray)
USB 2.0: 4
PS/2 keyboard (purple)
