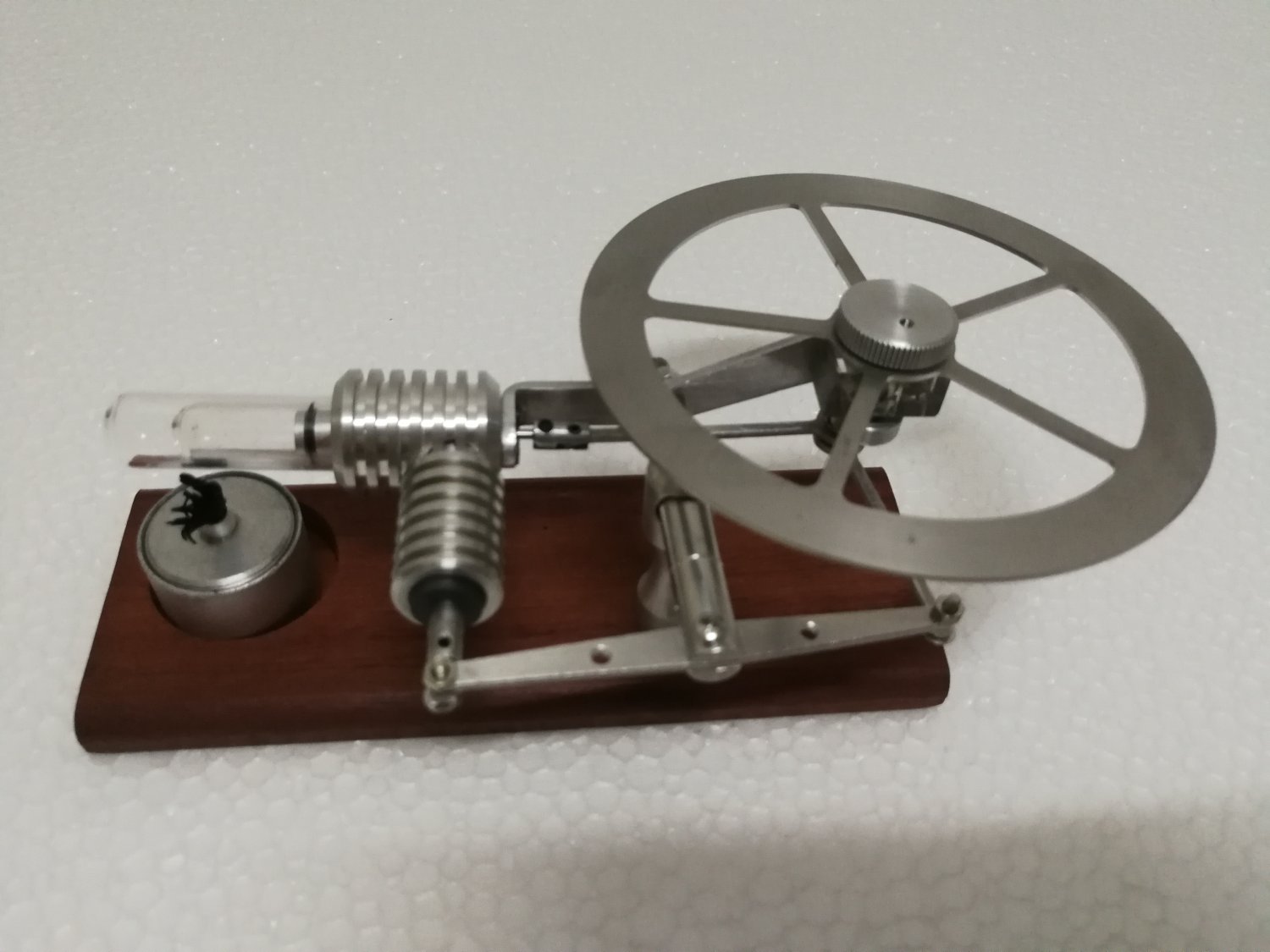

JAJ 1033 ~ Horizontal Large Flywwheel Hot Air Stirling Engine

The flywheel is larger & is horizontal.

Engine is fired by denatured alcohol burner . Heat is applied to the end of the glass cylinder . The cylinder is air-tight. Therefore air in the cylinder is permanently sealed inside the engine. This fixed amount of the air is heated & cooled , causing it to expand & contract , this driving the piston.

This
engine’s power piston moves vertically and the displacer moves horizontally
As the displacer moves up , the air in the cylinder moves down to the hot side , so the air pressure inside the cylinder increase , pushing up on the piston .



As the displacer move down , the air in the cylinder moves up to the cool side , so the pressure inside the cylinder decrease, pulling down on the piston.



Specification:-

Weight : 250g
Sizes : 220mm x 90mm x 120mm
Material : Cylinder – glass
Base – wood
Others – Aluminium 6061
VIDEO - https://youtu.be/-5NzdY_AO8c
