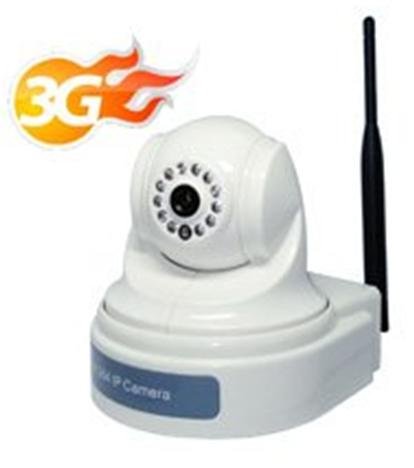

Guaranteed 100% 1/3"SONY CCD 420TVL 3G ip camera surveillance equipment EC-IP3630

Guaranteed 100% 1/3"SONY CCD 420TVL 3G ip camera surveillance equipment EC-IP3630

Specs:

Model
EC-IP3630

Camera Type
3G IP Camera

Image Sensor
1/3"SONY CCD 420TVL

Day/Night
Auto

Lens
6mm, f=2.0

Minimum Illumination
0Lux IR ON

Infrared Luminary
12 pieces IR-LED

Scan System
Interlace

Pan&Tilt
Pan:0-355,Tilt:0-90 Speed:15/S

Video/Audio

Video Compression
H.264/MJPEG

Frame Rate
1-30 f/s

Resolution
D1,Half D1,CIF,QCIF

Video Stream
Bit-rate Range :32K-4Mbps(H.264)

Image Settings
Brightness, contrast, saturation, hue,

Exposal control, AES(1/2 to 1/4,000 sec.), AGC, AWB, BLC,

Privacy mask, Motion Detection;

Video H-REV
Support horizontal reverse

Video V-REV
Support vertical reverse

Audio Compression
G.711

Audio Stream
Two-way audio, broadcast

Audio Input/Output
Mic input/output. Built-in Microphone, external microphone, sound pick-up

Network

3G
Support

UPNP
Support

Mobile surveillance
Support

Ethernet
10/100 Mbps Ethernet RJ-45 port

Protocols
PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,SIP,DDNS,DNS

Security
Multi-level user access with password protection

System Integration

IP Camera Hardware
CPU HI3512, FLASH 8M, DRAM 128M, OS Built-in Linux

View System
OS: Microsoft Windows 2000/2003/XP/Vista

requirement
Browser: Internet Explorer 6.0 or above

Management Software
FREE software for monitoring and recording, support 1-100 channels

WEB Server
Support IE browse, remote config/update, replay, record

Alarm port
1 external I/O interface

Alarm trigger
Video lost, motion detection, external input

Alarm Events
File upload via FTP, Email; Notification via Email, and TCP; External output activation; Local recording;

SDK
SDK available for application development and system integration

General

Local Storage
SD card slot

Connectors
RJ-45 10BASE-T/100BASE-TX, DC Power, Terminal block for 1 alarm input, 1output; Mic input headphone output, RS485 (PTZ), Alarm I/O, SIM slot

Operation Conditions
Temperature:-10-65; Humidity:

-------------------------------------------------------------
Payment:
We accept PayPal as payment which includes purchase Protection for Recipient. Please make payment in 3 days after buying item. Please only purchase what you intend on paying for.

Shipping & Processing:
Processing takes 5 days or less for Double Quality Testing, Preparation & Packaging. We ship World Wide. Shipping is from China mainland and items are shipped by EMS (5-10 Days), DHL (3-5 Days), FedEx (3-7 Days) or UPS (3-7 Days). We select the most reliable and efficient way to ship to you. Most quoted shipping prices are for DHL Shipping. All though we will do what we can by marking the item price way down to help with your country's customs/import Tax, the Recipient is still responsible for customs/import tax's do in there country.

Warranty:
Once received we have a 30 days refund policy on defective items. Buyer is responsible on return of the defective item with tracking number information.
12 month replacement warranty policy on defective items. Buyer is responsible on the return of the defective item and provide tracking number information.
