Features:
1. Powerful high-speed video protocol processor
2. High image & video quality with IR-CUT
3. High-sensitivity 1/4" CMOS sensor (300k pixels)
4. Auto IR-LED night vision up to 30m (98ft)
5. Motion detection alert via email or upload image to a specified FTP server
6. Support a wide range of browsers (IE, Firefox, Google, Safari, etc)
7. Support remote viewing & record
8. Support image fullsceen and image snapshot
9. Multi-level users management and passwords definition
10. Embeded Web Server
11. WEP, WPA and WPA2 Encryption
12. Optimized MJPEG video compression for transmission
13. Support wireless network (WiFi/802.11/b/g) mobile
14. Supporting Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)
15. Support multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
16. Support Mobile Phone View such as Iphone & Smart phone (It should support midp2.0 java mobile or pda mobile)
17. Simple to setup, Friendly GUI, DIY installation
18. Aluminum Alloy Design, Shell Vandal-Proof, IP65 Waterproof and weatherproof for Any Harsh Environment
Specifications:

Image Sensor
Image Sensor

1/4" Color CMOS Sensor with IR CUT


Display Resolution 640 x 480 Pixels (300k Pixels)


Lens f: 6mm


Mini. Illumination
0.5Lux

Lens
Lens Type
Glass Lens


Viewing Angle 42 Degree


Video Image Compression
MJPEG


Image Frame Rate 15fps (VGA), 30fps (QVGA)


Resolution 640 x 480 (VGA), 320 x 240 (QVGA)


Flip Mirror Images Vertical/Horizontal


Light Frequency 50Hz, 60Hz or Outdoor


Video Parameters Brightness, Contrast


Communication Ethernet
One 10/100Mbps RJ-45

Supported Protocol
HTTP, FTP, TCP/IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS

Wireless Standard
IEEE 802.11b/g

Data Rate
802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.)

Wireless Security
WEP, WPA and WPA2 Encryption

Physical
Infrared Light
60 LEDs, Night visibility up to 30 metres

Dimension 140 x 85mm (L*D)


Gross Weight 1.4kg
(Color Box Size: 250x200x120mm)


Net Weight 935g (accessories not included)


Power Power Supply
DC 5V/2.0A (EU, US, AU adapter or other types optional)


Power Consumption 5 Watts (Max.)


Environment Operate Temper.
0 ~ 55C degrees Celsius (14 ~ 122 degrees Fahrenheit)


Operating Humidity
20% ~ 85% non-condensing


Storage Temper.
-10 ~ 60 degrees Celsius (14 ~ 140 degrees Fahrenheit)


Storage Humidity
0% ~ 90% non-condensing


PC Requirements
CPU
2.0GHZ or above (suggested 3.0GHz)


Memory Size
256MB or above (suggested 1.0GHz)


Display Card
64M or above


Supported OS
Microsoft Windows 2000/XP Vista, Windows7, Mac OS, Linux


Browser
IE6/IE7/IE8,Firefox,Safari,Goolge Chrome,other standard browsers


Certification
CE, FCC (If you want to see the original certification, please contact us)


Warranty
1-year warranty


Instruction:

Description:
Color: Silver
Net weight: 935g
Unit packing gross weight: 1400g

Package included:

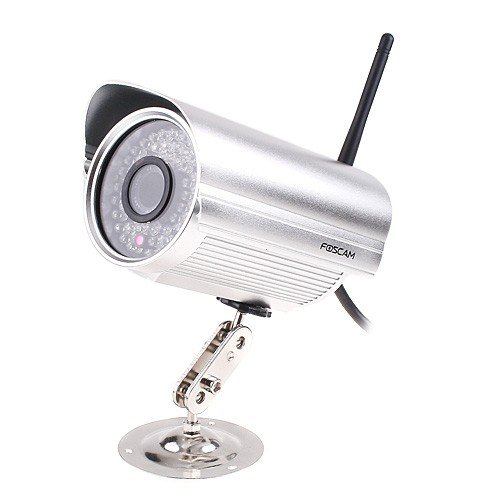

1 * Wireless IP camera
1 * Wi-Fi Antenna
1 * User Manual
1 * CD (Driver and tool)
1 * Network Cable
1 * DC Power Supply (5V)
1 * Mounting Bracket
