Feature:
Compact volume, low power consumption, high sensitivity, easy to operate, install and hide.
Micro Monochrome/Color Camera has monochrome and color types.
The lens has 2 typical specifications: 3.6mm for monochrome type; 6mm for color type.
It provides audio function, and can be equipped with infrared ray.
It can view the objects without outside light source, it is a full-function collector.
Can work together with other equipment including microcomputer to realize such capabilities as documents filming, photographing, complex video signal PAL(CCR) or NTS(ELA).
The working voltage of this product is DC+6V-/+12V.
It can be powered on for a long time, but the input voltage can be not exceeded DC+12V, while current can not be exceeded 250MA.

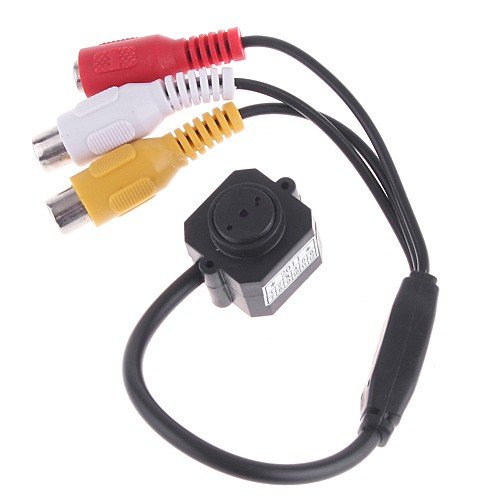

The yellow plug is video output cable, which can be connected with varieties of monitors and TV with video input jack to watch images.
Suitbale for car rearview, video meeting, schools, supermarkets, shops, workshops, warehouses, offices, visual telephone, visual E-mail, PC multi-media-toys, games, monitoring, guardianship, anti-burglary, safeguardor other special tasks.

Specifications:
Photographing Device: 1/4 video sensor
System: PAL/CCIR NTSC/EIA
Effective pixels: PAL 628*582; NTSC/EIA
Image area: PAL 5.78x4.19mm; NTSC 4.69x3.45
Resolution: 380lines
Scanning frequency: PAL/CCIR 50Hz; NTSC/EIA 60Hz
Lowest Illuminance: 0.2LUX
Sensitivity: +18DB-AGC ON-OFF
Power source: +9V DC
Power consumption: 200MW
Cable length: 22.5cm
Item size: 2.1 * 2.1 * 2cm
Item weight: 32g
Package size: 6.8 * 5.8 * 4.6cm
Package weight: 43g

Package including:
1 * Mini Monochrome/Color Camera
1 * Manual
