Overview

The kit DS-4245-500GB includes a 4 CH H.264 standalone DVR with 500GB HD and 4 outdoor security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.

The DVR D6364HT is a 4 channel, fully integrated, real time, and hardware based standalone digital video recorder. With network access, motion detection, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.

The cameras included in the kit are outdoor day night IR cameras. C8414VD is a NTSC signal system security camera while C9394VD is a PAL signal system security camera. All cables and power supplies are included.

DVR Features

4 CH H.264 Surveillance DVR
500GB HD Installed
H.264 Hardware Compression
Video Input / Output: BNC 4 / BNC 4
Audio Input / Output: RCA 1 / RCA 1
Two Type Video Out: TV Monitor BNC Output and PC Monitor VGA Output
Signal System: NTSC / PAL
Display: 120 fps
Record: 120fps
Remote Access: Internet Explorer or Netviewer Software
Support Remote View via Smart Phone & 3G Mobile with each of those systems below:
a) iPhone™
b) Google Android™
c) Blackberry™
d) Windows Mobile™
e) Symbian™


Camera Feature

PAL System with C9394VD

1/4"Color CMOS Image Sensor
Resolution: 420TV Line
Night Vision up to 30ft
Weatherproof
PAL Signal System

NTSC System with C8414VD
OV Color CMOS Image Sensor
Resolution: 420TV Line
Night Vision up to 50ft
Weatherproof
NTSC Signal System

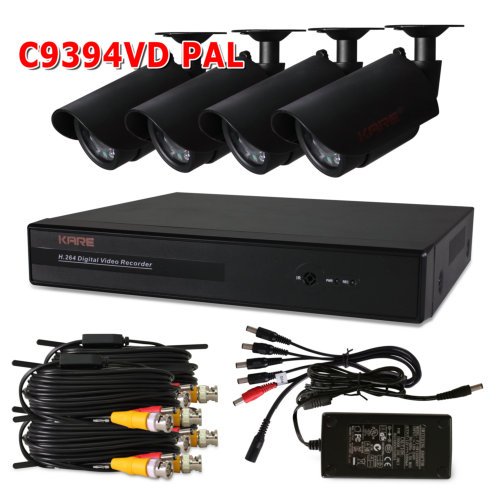

Package Includes


(1) D6364HT DVR System 500GB HD
(4) C9394VD PAL or C8414VD NTSC Indoor/Outdoor Security Camera

Attention: We will ship out C9394VD PAL to the countries employing PAL signal while ship out C8414VD to the countries employing NTSC signal. Please make a note with your country's signal information in "Message to Seller" when you make a checkout also!
(4) 60ft Video + Power All-in-one Cable for Security Camera
(1) Power Supply for Security Camera
(1) Ground Wire
(1) IR Remote Control & Mouse
(1) User's Manual
