$16.93
Add to Cart
F17HA-05MC - Copal Fans
10 available
Details
Shipping: Australia: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

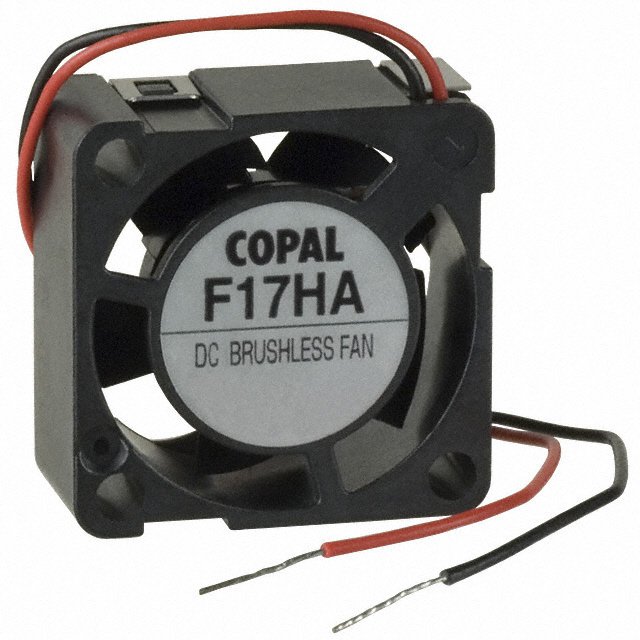

MOTOR, FAN, DC, BRUSHLESS, 17MM (option:2 wire leads)
Technical/Catalog Information F17HA-05MC
Vendor Copal Electronics Inc
Category Fans, Thermal Management
Voltage - Rated 5VDC
Power (Watts) 0.15W
Bearing Type Sleeve
Size / Dimension Square - 17mm L x 17mm H x 8mm W
Air Flow 0.530 CFM (0.015m³/min)
Features -
Termination 2 Wire Leads
Fan Type Tubeaxial
Noise 7 dB(A)
RPM 8000 RPM
Static Pressure 0.040 in H2O (10.0 Pa)
Weight 0.005 lb (2.27g)
Current Rating 30mA
Voltage Range 4.5 ~ 5.5VDC
Operating Temperature 14 ~ 140°F (-10 ~ 60°C)
Life Expectancy -
Lead Free Status Lead Free
RoHS Status RoHS Compliant
Other Names F17HA 05MC
F17HA05MC
563 1108 ND
5631108ND
563-1108
