Model: DR-001 door window sensor
Profile: door/window sensor, detector, transmitter, magnet strip, programmable, door contact, supervisory, alarm, low battery, tamper, wire-free


Door and window sensors work with a sensor and a magnet. The sensor is placed on the door or window, while the magnet is placed on the frame of the door or window. This creates a circuit between the two. However, when the circuit is broken by opening up the window or door, a signal is sent to the alarm control panel that an entry has been breached.

It can be placed at various access points within your home or office, including garages, within cabinets, attics, side doors and even freezers

Features:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
•Sensor alerts Wire-Free Home Security Alarm System when a protected door or window is opened.
•The system protects access points around the home including those on or in garages, cabinets, sheds, attics, side doors and freezers.
•Magnetic sensor can be mounted on of door or window.
•Features low battery warning.


Technical Parameters:
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---Wireless Signal Range: 350 ft., open air
---Transmitter Frequency: 315 MHz (crystal controlled)
---Chip: 1527
---Transmitter Frequency Tolerance: ± 15 kHz
---Transmitter Bandwidth: 24 kHz
---Unique ID Codes: Over one (1) million different code combinations
---Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
---Reed Sensitivity: 0.625 in. (1.59 cm) minimum gap, 0.85 in. (2.16 cm) typical
---Magnet Dimensions (L x W x H): 6.4 x 1.3 x 1.3 cm
---Sensor Dimensions (L x W x H): 7.1 x 3.6 x 1.5 cm
---Weight (including battery & magnet): 42 g
---Housing Material: ABS plastic
---Color: White
---Operating Temperature: -10°C to 50°C
---Relative Humidity: 5-90% Non-Condensing
---Battery (included): One (1) 12V 23A battery
---Warranty: One (1) year
---Included Accessories: Adhesive strip (sticker)

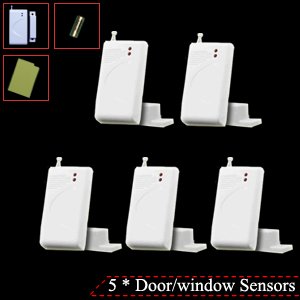

Basic components:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- Door/window sensor (transmitter) – 5 pcs;
- Magnet strip – 5 pcs;
- Sticker – 5 pcs;
- Battery – 5 pcs;
