Six Output Traffic Controller / Sequencer
Model# MPS-6
(MPS = Multi-Pattern Sequencer)

Designed to run multiple types of signals.

Five Standard / Default patterns:
4-way
3-way + PED signal
Flashing REDS
Flashing Yellows
Alternating RED/YELLOWS

Additional Profiles available upon request at time of order:
Doghouse
2-Light 4-way
UK sequence
2-way PED
Custom Pattern (you define, we install)

Dimensions 2-1/2" X 3"
Input voltage: 120VAC

Features:
User programmable timing
Independent phase times
Multiple Pattern capable

Extended cycle timing range from 1/2 second to over 20 MINUTES per step
Screw-Terminal connections, eliminating the need for soldering

120 Watts per output channel
LED compatible (120 vac)
Simple TIME-SETTING procedure
User-replaceable fuse (Type GMA 2 - 2.5A)
Retains timing even if power is removed

OVERVIEW
There are two push buttons on the circuit board:

Time Set: Used to set the timing for each step in the selected sequence

Sequence Select: Steps through the difference sequences / modes of operation.

Timing for each step can be set differently, with a possible range of 1/4 second to 20 minutes PER STEP.

The fuse is user replaceable. Fuse type is GMA 2A - 2.5A 125/250VAC available from any local Radio Shack or Electronic store.

MOUNTING:

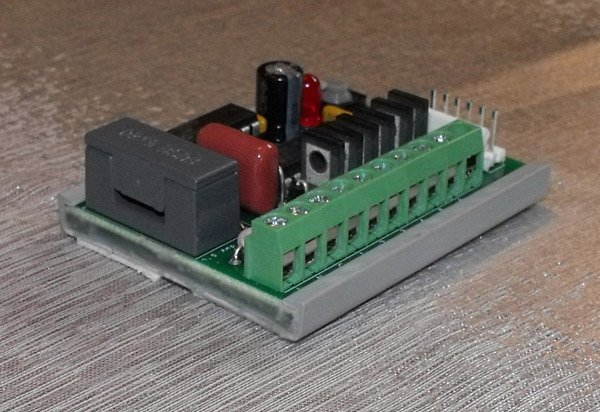

The Circuit board is housed in a plastic carrier with adhesive tape on the bottom. Simply peel and stick to mount.


Every unit is fully tested before shipment. A wiring diagram is included with circuit board.

WARNING: Basic electrical wiring skills for this item are required.
Familiarity with 120 VAC / High Voltages is also required.


Controller / Sequencer Specifications
Range (Min - Max)
Operating Voltage: 108 - 120 VAC

Output Channels: 6 (numbered 1 through 6)

Total Wattage per output channel: 140 watts @ 120VAC (60 watt bulbs max for a 4-way configuration (2-bulbs per output) )

Setting timing overview...
Hold down TIME-SET button for 5 seconds until TIME-SET-LED comes on, then release button.
Tap the TIME-SET button when you want the signal to advance to the next light. Do this for each light.
Once the last step in the sequence is set, the TIME-SET-LED will turn off and the controller will start normal sequence operation.

note: The new time settings will remain in memory EVEN IF POWER IS REMOVED.

Customized sequences available upon request.
