Specifications:

* This lens is being designed for 1/3 inch CCD camera and mount is CStype and flange back of CS-MOUNT is 12.5mm
* Iris blade on lens is being operated by DC from camera accordingly. Please use this lens with conbination of camera built-in auto iris amplifier or camera which can be switchable for Video signal/DC-iris
* Fixing between mount and camera must be turnde right toward camera to the end tightly . Lens must be turned to opppsit direction and you can adjust fixing position of lens quite easily
* This lens has two focal distance.The change of Tele/Wide can be done with zooming.In case you want to make focus at an optional between Tele/Wide you must re-adjust focusing once again
* This connector and its cable connection is common for fixed focal/vari-focal lens.In case of erroneous connection ,it will be caused malfunction and breakdown of lens and camera
* Focal Length:5.0-100mm
* Aperture: 1.6
* Image Format: 1/3 Inch
* Mout: CS




*

Package Included:

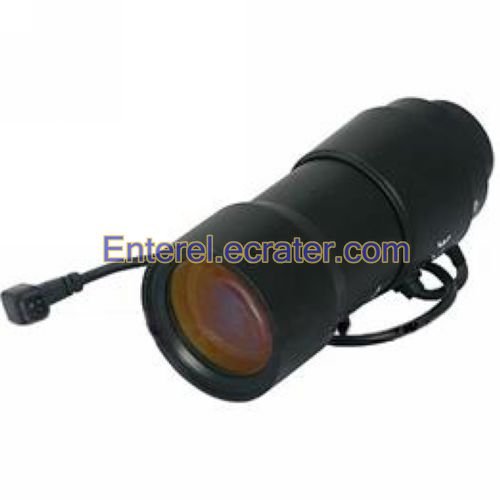

o 1 x Auto Aperture Varifocal Zoom 5-100mm F1.6 1/3 Inch CS Security CCTV Video Camera Lens
