Specifications:

* This lens is being designed for 1/3 inch CCD camera and mount is CS
* type and flange back of CS-MOUNT is 12.5mm
* This lens is not built-in amplifer for auto iris
* Iris blade on lens is being operated by DC from camera accordingly
* Please use this lens with conbination of camera built-in auto iris amplifier or camera which can be switchable for Video signal/DC-iris
* Fixing between mount and camera must be turnde right toward camera to the end tightly
* Lens must be turned to opppsit direction and you can adjust fixing position of lens quite easily
* This lens has two focal distance
* The change of Tele/Wide can be done with zooming
* In case you want to make focus at an optional between Tele/Wide you must re-adjust focusing once again
* This connector and its cable connection is common for fixed focal/ vari-focal lens
* In case of erroneous connection ,it will be caused malfunction and breakdown of lens and camera
* Focal Lenght: 5.0-100mm
* Aperture: 1.8
* Iris Operation: Manual
* Focus Operation: Manual
* Image Format: 1/3 Inch
* Mout: CS



Package Included:

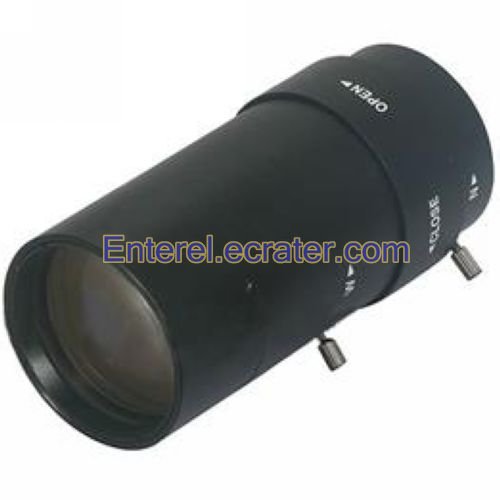

* 1 x Manual Aperture Varifocal Zoom 5.0-100mm F1.8 1/3 Inch Security CCTV Video Camera Lens
