$84.55
Add to Cart
Western Digital 2.5" 320GB SATA 3.0Gb/s 5400rpm 8MB Notebook HDD
9 available
Details
Shipping: USPS calculated - check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Model WD3200BPVT
Product Description:
Western Digital SATA HDD 320GB WD3200BPVT Scorpio Blue Mobile SATA 3.0GB/s 5400rpm 8MB 2.5-in Bulk
Mfg. Part Number:
WD3200BPVT
Warranty: 3 Years Manufacturer Warranty
Feature and Benefits:
Massive capacity.
WD Scorpio Blue hard drives offer the highest capacity for space-hungry operating systems with plenty of room left over for photos, music, and video.
Low power consumption.
State-of-the-art seeking algorithms optimize the way the drive seeks for data, which significantly improves power consumption.
Ultra cool and quiet.
In a notebook drive, silence is golden. WD's exclusive WhisperDrive technology yields one of the quietest 2.5-inch hard drives on the market.
Specifications:
Rotational Speed 5,400 RPM (nominal)
Buffer Size 8 MB
Average Latency 5.50 ms (nominal)
Seek Times
Read Seek Time 12.0 ms
Track-To-Track Seek Time 2.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Physical Specifications
Formatted Capacity 320,072 MB
Capacity 320 GB
Interface SATA 3 Gb/s
User Sectors Per Drive 625,142,448

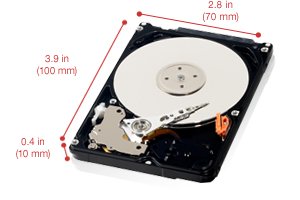

Physical Dimensions
English
Height 0.374 Inches
Depth 3.94 Inches
Width 2.75 Inches
Weight 0.26 Pounds
Metric
Height 9.5 mm
Depth 100.2 mm
Width 69.85 mm
Weight 0.117 kg
Environmental Specifications
Acoustics
Idle Mode 24 dBA (average)
Seek Mode 0 26 dBA (average)
Temperature (English)
Operating 32° F to 140° F
Non-operating -40° F to 149° F
Temperature (Metric)
Operating -0° C to 60° C
Non-operating -40° C to 65° C
Humidity
Operating 8% to 95% Non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating 0.00459 g²/Hz (10 to 500 Hz)
Non-operating 0.05102 g²/Hz (10 to 500 Hz)
Electrical Specifications
Current Requirements
5 VDC
Read/Write 500 mA
Idle 400 mA
Standby 50 mA
Sleep 20 mA
Power Dissipation
Read/Write 2.50 Watts
Idle 0.85 Watts
Standby 0.25 Watts
Sleep 0.10 Watts
