Specifications:
Plastic casing and waterproof design for outdoor application
Anti-fog function

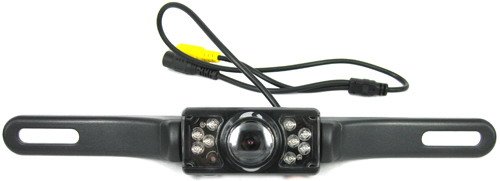

Display the barriers at the back of cars, the driver may backup the car safely and evade the barriers through this rearview camera that also displays the distance of the car away from the barrier
High definition IR night viewing illumination (Built-in seven IR lamps); Low illumination but high definition camera produces clearer images
Image device: 1/3 Inch Colour CMOS
Distance of transmission: 100M (no barrier)
Resolution: 420-cable image sensor
Visual angle: 120 degrees
Diagonal visual angle: 90 degrees (Vertical visual angle)
Shockproof: 6.8
Emission frequency: 2,414MHz
Video input: 1.0V p-p, 75Ω
Power supply: DC12 + 6V, 200mA
Working temperature: -20 - 60degrees Celsius
Receiver:
- Plug and play-convenient to use
- Sensitivity: -93dbm, video bandwidth: 8.0MHz
- Frequency receiving mode: Built-in frequency phase lock loop
- Signal demodulation mode: Wideband frequency demodulation
- RF input impedance: 75Ohm, IF frequency: 480MHz
- IF bandwidth: 18MHz, AV output: Composite video
- Working voltage: DC5V
- Working current: 150mA
- Working temperature: -20 - 60 degrees Celsius
Applicable for all kind of cars, connect red cable to the anode of backup lamp and connect black cable to the cathode
Approved: CE / FCC
