ALLSCANNER is the latest automotive diagnostic tool. It was designed by the new international standard, it can identify different vehicles intelligently, and it can support all vehicles in the market. It adopt wireless communication module of WIFI 802.11b/g, it can be used with Laptop or PDA. The diagnostic software can be operated under the platform of Windows and WinCE.

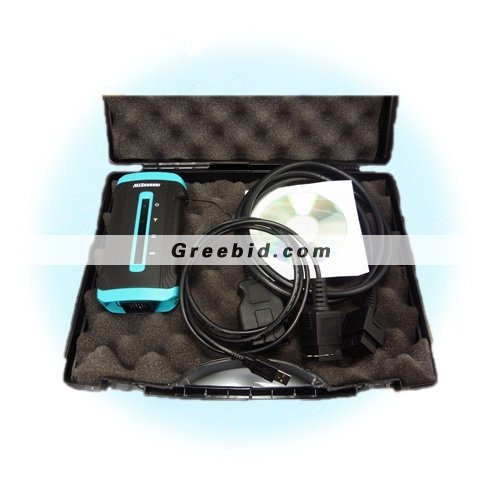

Product's appearance as below:
Handheld Terminal PDA or Handheld touch screen display, WinCE platform.
Laptop Wireless Laptop, Windows platform.
VCX Diagnostic box, the communicate bridge between mainunit and vehicles.
Connector Connect to vehicle diagnostic socket.
Wire connect RS232 serial port,115200bps
Wireless connect WIFI 802.11b/g,Connect to WIFI network.
CPU 16 digit Dual Cell specialize CPU
RAM 64KB RAM
FLASH 256KB FALSH
Diagnostic Port 24PIN, self-determination design
Wireless Port 802.11b/g WIFI wireless
LED 4 LED indicator light,indicate power and status.
Power DC 9V-28V
Working Temperature -20¡«+70 ¡ãC
StorageTemperature -40¡«+85 ¡ãC
1.Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles
2.Use standard 802.11b/g WIFI wireless,connect easy to network, or
connect to Laptop to realize wireless diagnosis.
3.Diagnostic software accord with international standard, collocate
communication port flexibly, less connectors support almost all vehicles
4.Self-determination design for connectors and cables.
5.Compliant with 12V and 24V communication, Support heavy duty vehicles.
6.Hardware accord with CE and FCC standard.
Vedix? is the latest diagnostic software platform of ALLScanner, be used with hardware of VCX?,the characters be shown as below:
Diagnostic software can be operated under WinCE and Windows,
available installation for Laptop or PDA.
Automotive Diagnostic language (VDL) exploitation platform based on
XML by self-determination and high efficiency database management
system, these will make it easily to explore the vehicles.
Continuously update for diagnostic software.
Special Function for optional
1.Support diagnostic software of TOYOTA TIS Techstream to realize same function as that.
2.Support diagnostic software of BENZ STAR ( CAN BUS)
3.Support diagnostic software of BMW INPA to realize same function as that
4.Support diagnostic software of NISSAN Consult-III,On developing.
5.Support diagnostic software of HONDA HDS,On developing.
6.Support diagnostic software of FORD VCM IDS,On developing.
7.J2534 Reprogramming Capability.
