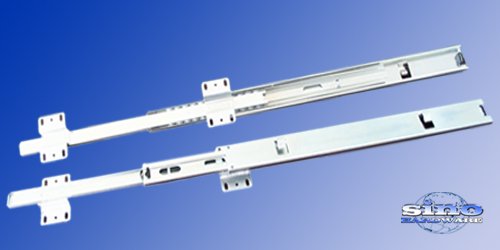

SB-4520 Full Extension Basket Slide & Basket Ball Bearing Slide
Item NO.: SB- 4520
1. Mounting: side mounted,
2. Thickness: 1.0x1.0x1.2mm, (or 1.2x1.2x1.5mm)
3. Length: 18" (we has from 14" to 24")
4. Clearance: 12.7+/-0.1mm, 1/2"+/-1/32"
5. Load rating: 100LB (45KG)/18"
6. Material: Galvanized steel, Work hardened cold rolled steel
7. Finishing: Electro-Zinc Plated with clear or color chromate, black chromate available
8. Feature: Telescoping movement on precision steel ball bearings.
Features 32mm hole pattern with direct access mounting:
non-handed, trigger disconnect for easy drawer removal.
Inner packing: 1set/poly bag, or as per customer's requirements
Outer packing: 15 Sets/export carton, or as per customer's requirements
Please note this is only an online showroom of our goods. We have complete product lines of ball bearing (drawer) slide, drawer slide, keyboard slide, cabinet slide, our own E-catalog, own pictures, price list, etc.
